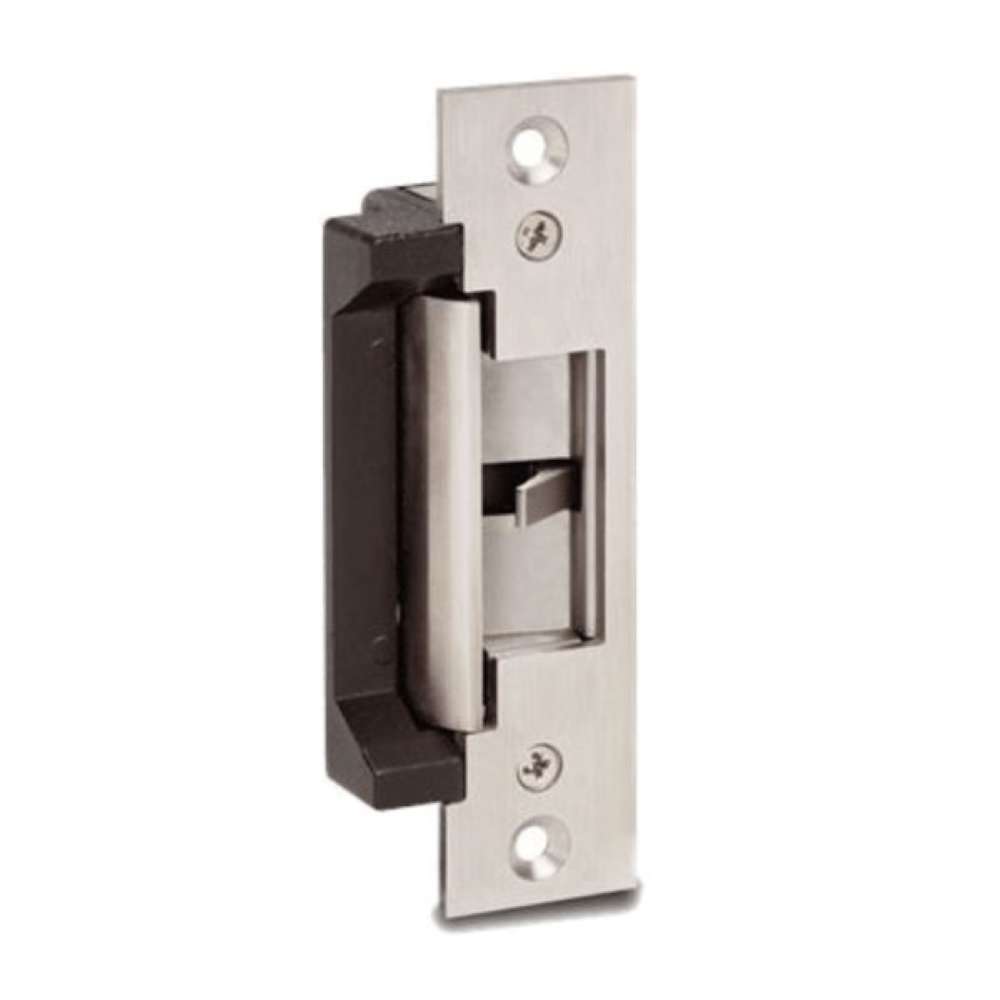

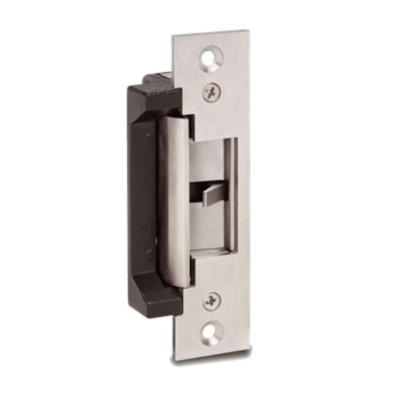

Hager 2925-US32D Electric Strike Cyl Locks stainless Steel
Accessories
- 2-679-0028 - Buzzer 12/24 VDC
- 2-679-0029 - Rectifier for AC operation
Applications Designed for use with cylindrical with up to 5/8" throw latch bolts with 1/8" door gap
Certifications
- ANSI A156.13 compliant, Grade 2
Electrical Specifications
- 200/100 mA @ 12/24 VDC Solenoid
- 3A @ 30VDC Latch Monitoring (SPDT)
- SPDT, DRY 3A @ 30VDC
Faceplate Option: 4-7/8” (124 mm) faceplate for aluminum, wood, and hollow metal frames
Features
- Quick and easy installation with compact low profile 1-1/4" backset
- Internally mounted solenoid and factory-supplied mounting tabs
- Fail Secure - Field reversible for fail-safe
- Non-Handed Latch status monitoring standard
Finishes US32D Satin Stainless Steel
Material All stainless steel parts with durable diecast body for corrosion resistance
- The latch must enter at the strike “Centerline” located exactly between the top and bottom of the strike faceplate. Refer to strike installation instructions and template to determine strike location prior to frame preparation.
- Not to be installed in an inactive door leaf
- For use with cylindrical and mortise locks with up to 5/8" throw latch bolts with 1/8" door gap
- Product Description
- Electric Strike - Used with cylindrical locksets with up to 5/8” latch
Size
- 4-7/8’’ H
- 1-1/4’’ W
- 1-1/4’’ D
