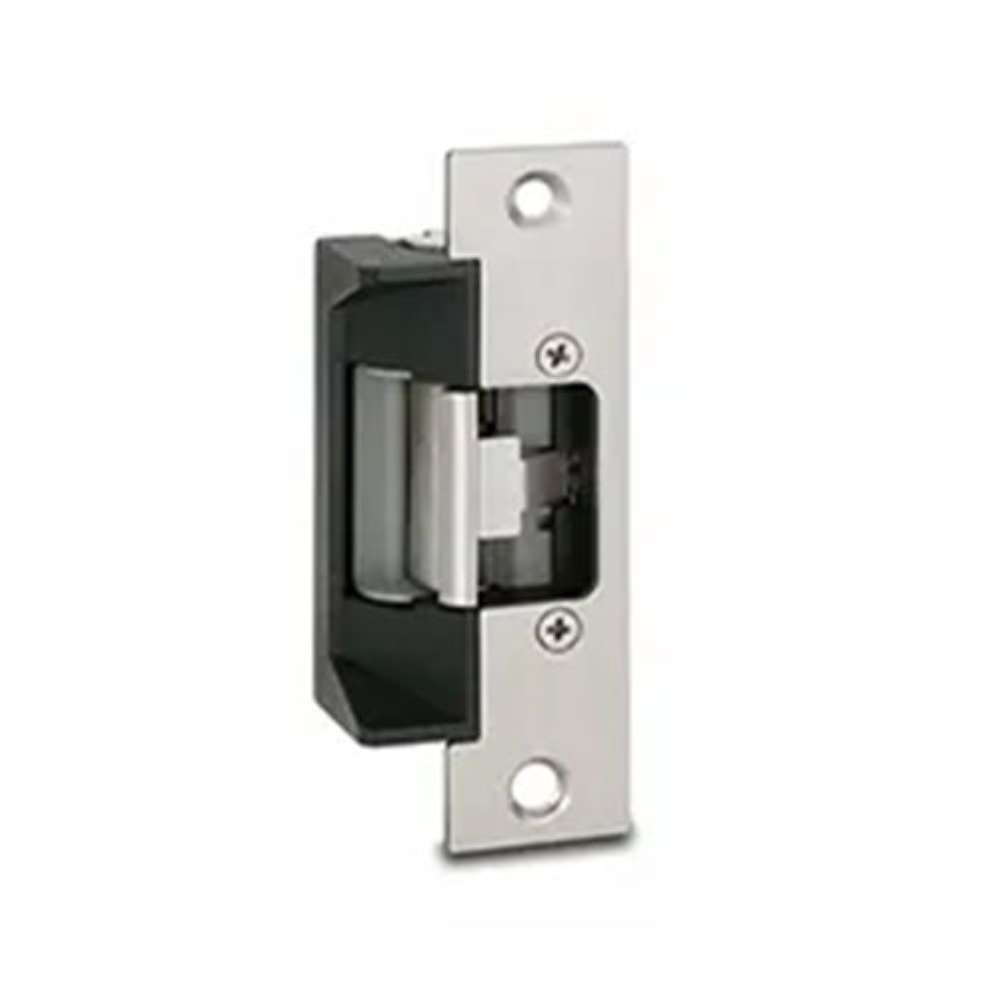

Hager 2928-US32D-SC Square Steel Electric Strike Cyl Mortise
Medium Duty Electric Strike used with single doors using a cylindrical or mortise lockset with up to a 3/4" latch bolt throw. (3/4" latch bolt throw requires a minimum 1/8" door gap)
Accessories
- 2-679-0028 - Buzzer 12/24 VDC
- 2-679-0029 - Rectifier for AC operation
Applications
- Grade 2 Medium-Duty Electric Strike
- Used with single doors using a cylindrical or mortise lockset with up to a 3/4" latch bolt throw. (3/4" latch bolt throw requires a minimum 1/8" door gap)
Certifications
- ANSI A156.13 compliant, Grade 2
- UL-1034 Burglary Resistant (interior use application)
Electrical Specifications
- 200/100mA @ 12/24VDC - Solenoid | 140/70mA @ 12/24VAC - Solenoid
- SPDT, 3A @ 30VDC - Latch Monitoring
- SPDT, 3A @ 30VDC - Keeper Closed & Locked Status
- SPDT, 3A @ 30VDC - Keeper Open/Closed (Optional)
Faceplate
Options: 6-7/8" Round Corner, 7-15/16" Round Corner, ASA Round Corner, ASA Square Corner
Finishes
- US32D Satin Stainless Steel (Square Corner)
- ALM Painted Satin Aluminum (Radius Corner)
Material
All stainless steel parts with durable diecast body for corrosion resistance. (Square corner faceplates, stainless steel. Radius corner faceplates, aluminum)
Monitoring Options None. Keeper-Open/Closed. Keeper - Open/Closed.
Notes
- The latch must enter at the strike “Centerline” located exactly between the top and bottom of the strike faceplate. Refer to strike installation instructions and template to determine strike location prior to frame preparation.
- Additional finishes are available. Inquire with Hager Customer Service for pricing
- Not to be installed in an inactive door leaf
Size
- 2928-SC - 1-1/4” W x 4-7/8” H x 1-3/16” D
- 2928-RC - 1-1/4” W x 4-7/8” H x 1-3/16” D
- 2928-6R - 1-1/4” W x 6-7/8” H x 1-3/16” D
- 2828-7R - 1-7/16” W x 7-15/16” H x 1-3/16” D
