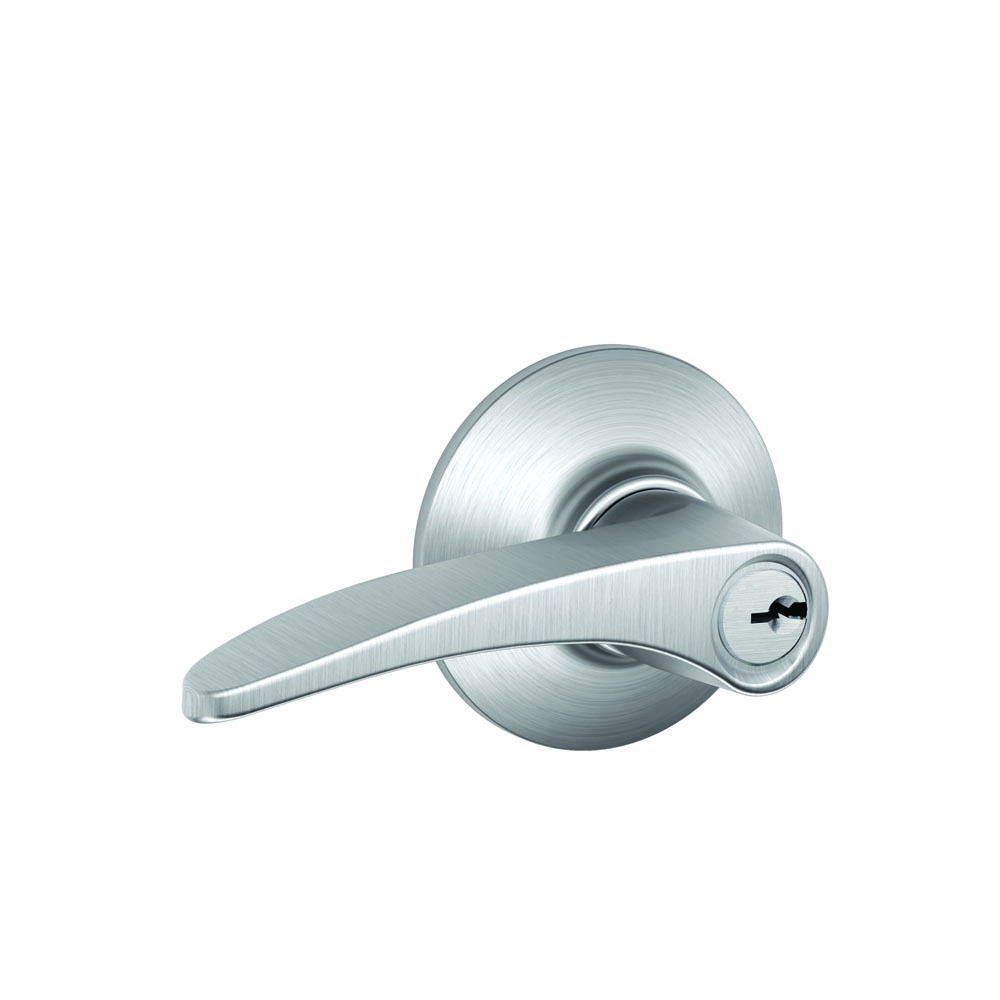

Schlage F51A-MNH-626 Entry Lock, Manhattan Lever

SKU # SC/F51A-MNH-626

Schlage F51A-MNH-626 Entry Lock, Manhattan Lever

The Manhattan Lever is part of the Schlage F-Series

Please See Part Number for Correct Choice


- Function: "C" Keyway Standard.

Various Finishes Available

- Select Handing: Left Hand (LH) or Right Hand (RH).

US$73.15

Description:

Description:

Schlage F51A-MNH-626 Entry Lock, Manhattan Lever

The Schlage Manhattan is a Grade 2 lever that is part of the Schlage F-Series Collection. Clean lines and simple design bring a touch of elegance to any space.

The Century Rosette is chic, with a slightly curved shape that is simple yet imaginative. The Century trim is a Mid-Century Modern design, characterized by homes built between 1945 and 1980 and made popular in Southern Californian cities like Santa Monica.

- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Interior screws are not concealed.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.

Function: The Schlage Manhattan Lever is available in Passage (F10 MNH), Privacy (F40 MNH), Keyed Entry (F51A MNH), and Single Dummy (F170 MNH) function.
Finish: The Schlage Manhattan Lever comes in Satin Nickel (619), Polished Chrome (625), and Satin Chrome (626) finish.
Rosette: The Schlage Manhattan Lever comes in Century (CEN) Rosette.
Handing: The Schlage Manhattan Lever is non-handed (reversible) except for the dummy function; Left Hand (LH) or Right Hand (RH).
Click here for Handing Diagram.

Come standard with Triple Option (Round Corner, Square Corner, Drive-in) Spring Latches (16-210) and Dead Latches (16-211).

Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, 7/8" Housing Diameter, 1/2" Throw, Round Corner.
