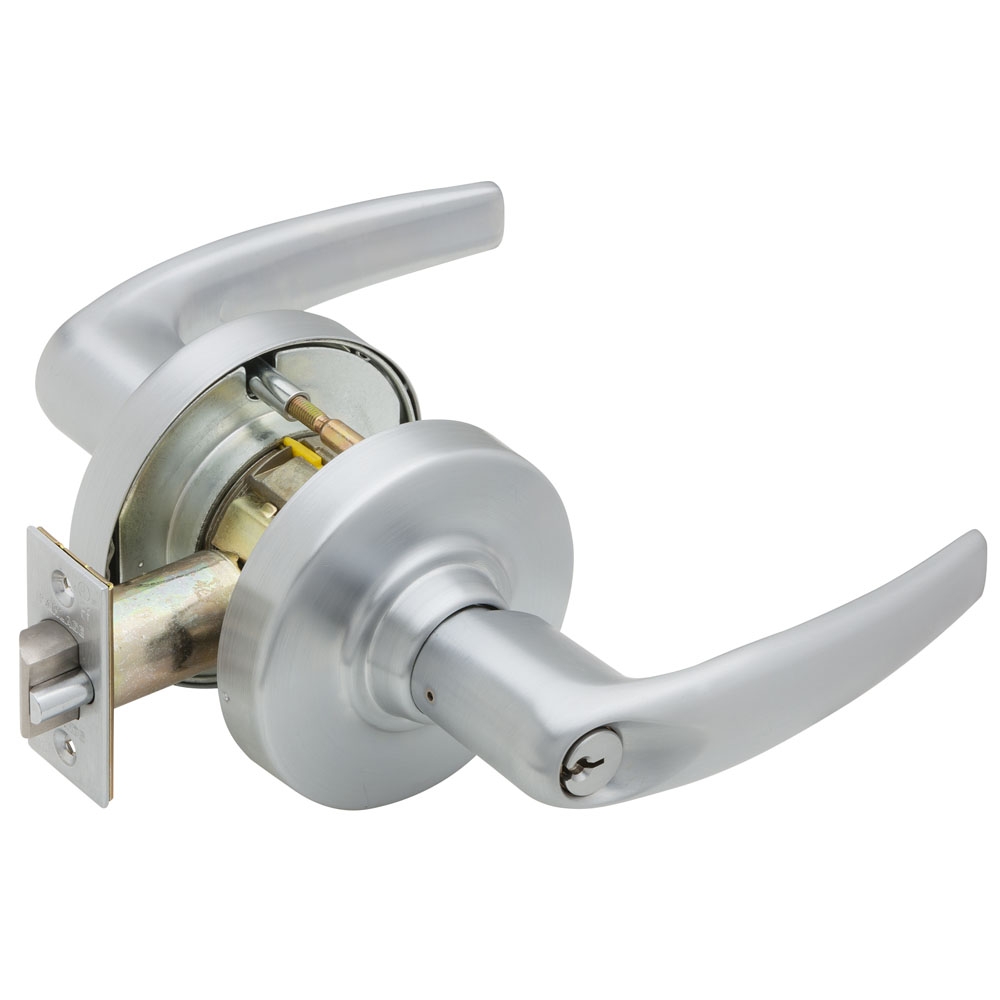

Schlage ND80PDEU-ATH-626-RX Electrified Cylindrical Lock


The Schlage ND80PDEU-ATH-626-RX Electrified Cylindrical Lock is an Athens Style Lever, Grade 1, Patented Everest 29 Cylinder, Electrified Cylindrical Lock for the ND Series.  Performance beyond Grade 1 - The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.

Features include:

  • Athens Lever
  • Patented Everest 29 Cylinder
  • RX - Request to Exit
  • Electrified Storeroom - Outside lever continuously unlocked (EU) by 12-24V DC. EU is fail secure (power fail locks outside lever). Key outside serves as mechanical override. Inside lever always free for immediate egress.
  • ND Series Wired Electrified lock - Keyed function
  • Satin Chrome Finish
