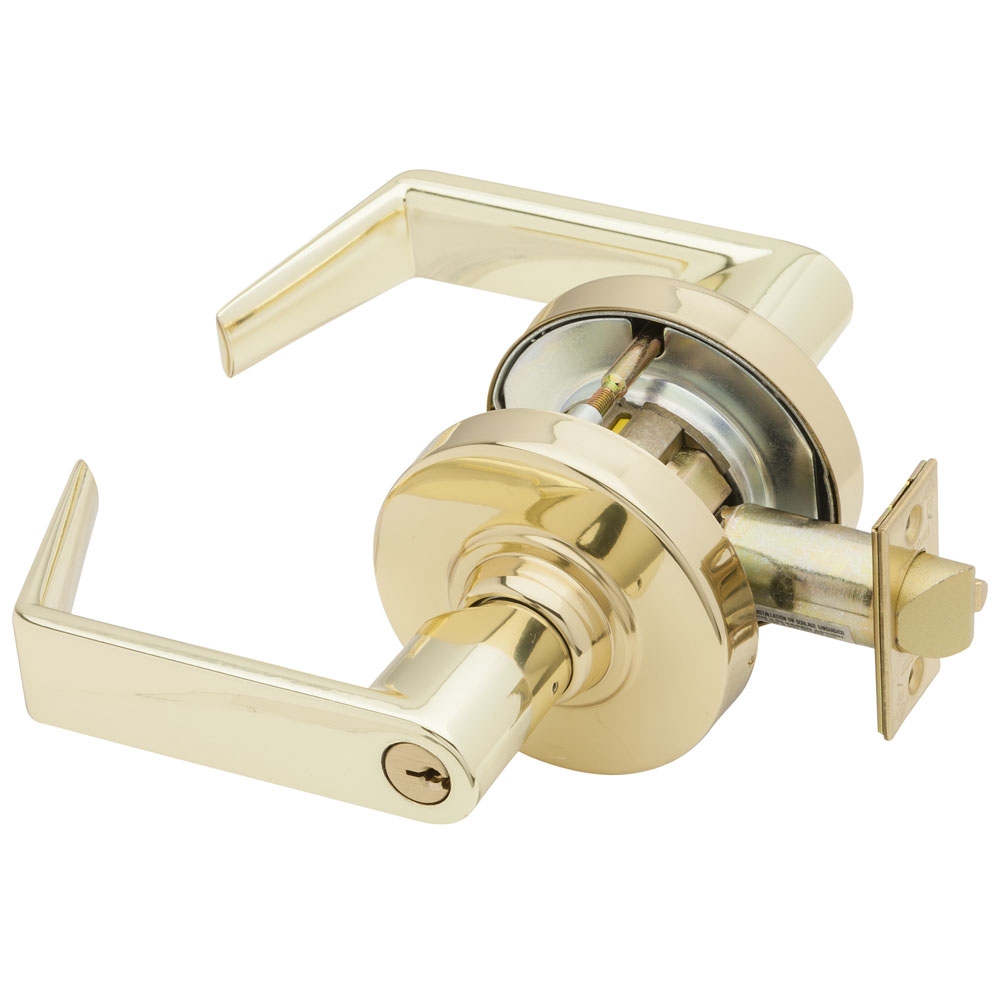

Schlage ND80PDEU-RHO-605 Electrified Cylindrical Lock


"C" Keyway Standard

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W



Schlage ND80PDEU-RHO-605 Electrified Cylindrical Lock

Schlage ND80PDEU-RHO-605 Electrified Cylindrical Lock



Door Handing: The Schlage Commercial NDBE-Series Levers are reversible.

Function: The Schlage NDBE-Series Levers are available in Storeroom with Vandlgard (NDBE) function.

Finish: The Schlage NDBE-Series Levers come in Satin Chrome (626) finish.

Lever Design: The Schlage NDBE-Series Levers come in Rhodes (RHO) design.

Cylinder Options: All Storeroom (JD) functions are sold Less Cylinder; see "Companion Items" above for all Cylinder & Keying options.

Users: Up to 5,000.

Audits: Up to 2,000.

Credential Verification Time: < 1 second.

Visual Communications: LED (red, amber, green).

Audible Communications: Audible indicator (field configurable).

Data Rate: 24 Mbps via Wi-Fi.

Connectivity Options:

  • Mobile (send updated at the lock).
  • Wi-Fi access point (automatic daily updates).
  • No-Tour with MT20W enrollment reader and smart credentials.
  • ENGAGE Gateway (real-time communicaton).
  • RS-485 to ACP or IP to host.

Battery life: Up to 2 yrs with 4 AA batteries.

Operating temperature:

  • Exterior: -31° to 151°F (-35° to 66°C).
  • Interior: 32° to 120°F (0° to 49°C) (battery).

Operating humidity: 0 - 100% non-condensing.

Door Range: 1-5/8" - 2" (Standard).

Latch: 1-1/8" x 2-1/4", Square Corner Faceplate, 1" housing diameter, 1/2" throw.

Strike: Standard 1-3/16" lip, ANSI, DPS, 1-1/4" x 4".

Backset: Standard 2-3/4" Backset.

Certification: ANSI/BHMA Certified A156.25-2013, A156.2-2011, Series 4000, Grade 1, UL 294, UL 10C.
