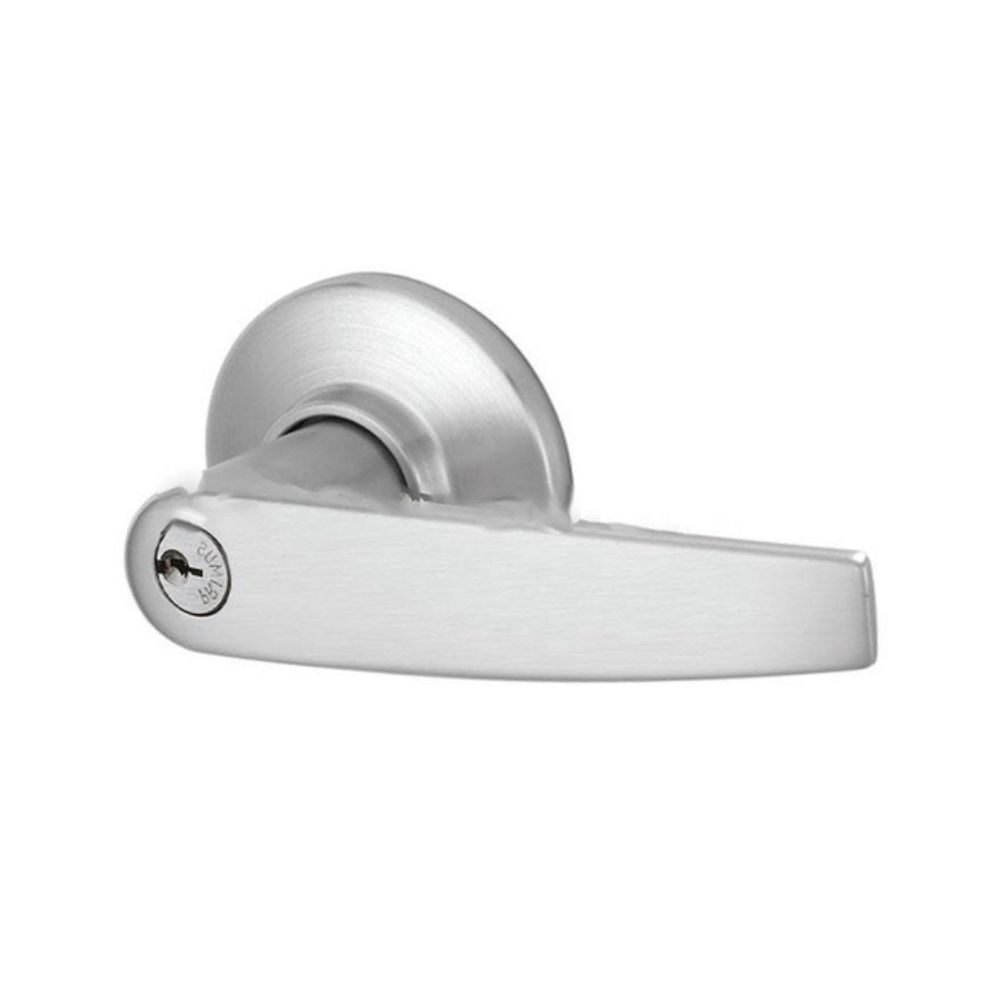

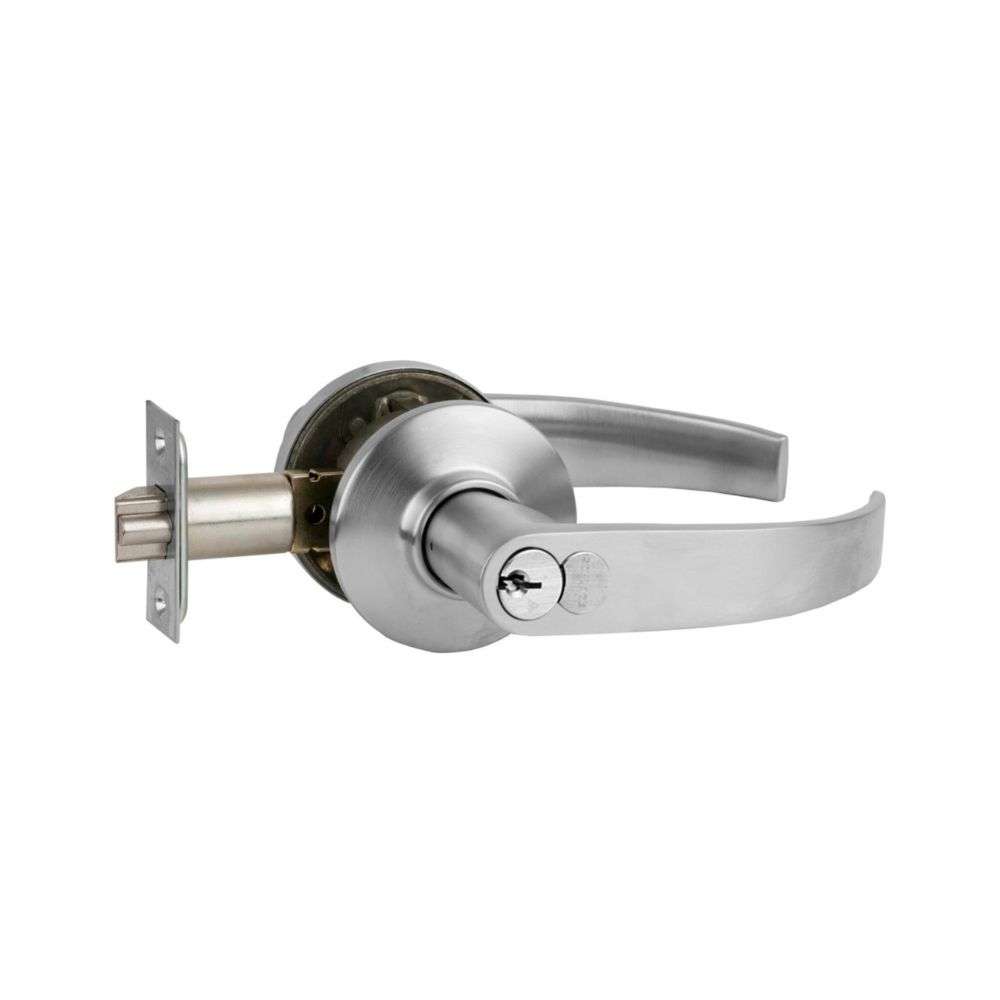

Schlage S70PD-JUP-626 Tubular Lever Lock, Classroom

SKU # SC/S70PD-JUP-626

Jupiter Commercial Lever S70PD

  • Applications: Interior light to medium duty commercial doors: office tenant, laboratories, passage and entrance doors. Heavy duty residential doors: single and multi-family housing.
  • Exposed Trim: Levers are pressure cast zinc, plated to match finishes indicated. Roses, latch faceplates, and strikes are wrought brass or bronze.
  • Keying: 6-Pin tumbler with two nickel silver keys per lock. Other keying options available from the factory include master keying, grand master keying, construction keying, and interchangeable core. Classic Primus® and Everest® Primus® are also available.
  • Door Range: 1 3/8"" - 2"" (35 mm - 51mm), except S40D: 1 3/8"" - 1 7/8"" (35 mm - 48 mm).
  • Backset: Universal backset latches standard, fit either 2 3/8"" (60 mm) or 2 ¾"" (70 mm) backsets. 5"" (127 mm) backset latches available.
  • Deadlatches: 1"" x 2 ¼"" (25 mm x 57 mm), square corner faceplate, 7/8"" (23 mm) housing, ½"" (13 mm) throw. Latches are furnished in brass, bronze or chrome finishes compatible with lock trim. Orders for complete locks are provided with a G506-815 sleeve for latches installed in doors with 1"" (25 mm) edge bore.
  • Strikes: Square corner, 1 1/8"" x 2 ¼"" x 3/32"" (29 mm x 57 mm x 2 mm) T strike with 1 1/8"" (29 mm) lip, furnished with dust box, #10-001 is standard. Optional lip lengths 1 "" though 2"" (25 mm - 51 mm) ¼"" (6 mm) radius round corner strikes and ANSI 1 ¼"" x 4 7/8"" (32 mm x 124 mm) strikes are also available.



Unlock exceptional security and unmatched durability with the Schlage S70PD-JUP-626 Classroom Door Lever Set.

Crafted from robust materials with a sleek satin chrome finish, this Grade 2 lever is specifically designed to meet the rigorous demands of educational settings and other high-traffic environments.

Product Highlights:

  • Model: Schlage S70PD-JUP-626
  • Finish: Satin Chrome (626) for a clean, professional look
  • Durability: Engineered for longevity with heavy-duty components that withstand extensive use
  • Security: Features Schlage's trusted C Keyway standard cylinder for reliable access control
  • Compliance: ADA compliant, ensuring accessibility for everyone
  • Installation: Simple installation process, reversible handing accommodates all door orientations
  • Maintenance: Easy to service, reducing downtime and maintenance costs

Superior Construction:

The Schlage S70PD-JUP-626 is built with heat-treated steel locking components and independent lever torsion springs, enhancing its strength and lifespan. These features make the lever set an ideal choice for schools, hospitals, and commercial buildings where durability is crucial.

User-Friendly Design:

This classroom lock function allows the outside lever to be locked and unlocked by key while keeping the inside lever always unlocked, facilitating quick and safe egress in emergencies. The design is intuitive and ensures that the premises remain secure without compromising on safety.

Easy Installation and Maintenance:

With its universal backset latches, the Schlage S70PD-JUP-626 fits doors ranging from 1-3/8" to 2" in thickness. The lockset is designed for quick installation, which means less disruption to daily operations. Ongoing maintenance is straightforward, thanks to the lock's design which allows easy access to replace or service components.

ADA Compliance and Safety:

Schlage is committed to accessibility and safety. This lever set meets ANSI A117.1 requirements and is compliant with the Americans with Disabilities Act (ADA), making it a considerate choice for environments serving diverse populations.

Security You Can Trust:

Schlage locks are synonymous with security. The S70PD-JUP-626 lever set is no exception, providing peace of mind with its robust construction and secure locking mechanism. Whether you’re securing a classroom, office, or administrative space, you can trust Schlage to protect what matters most.

Versatile Application:

Ideal for installation on classroom doors, the lever set can also be used in various other settings, such as administrative offices, storerooms, and faculty lounges. Its universal design and locking functionality make it suitable for nearly any internal security need in both public and private sectors.

Technical Specifications:

  • Backset: Universal, fits 2-3/8" or 2-3/4"
  • Door Thickness: Suitable for 1-3/8" to 2" doors
  • Certifications: Meets or exceeds ANSI A156.2 Series 4000, Grade 2
  • Warranty: Comes with a commercial three-year limited warranty and a full mechanical lifetime warranty for residential use

Elevate the security and functionality of your facilities with the Schlage S70PD-JUP-626 Classroom Door Lever Set. Its professional finish, rigorous engineering, and user-focused design make it a top choice for secure, accessible door hardware solutions. Invest in Schlage for reliability, durability, and peace of mind.
