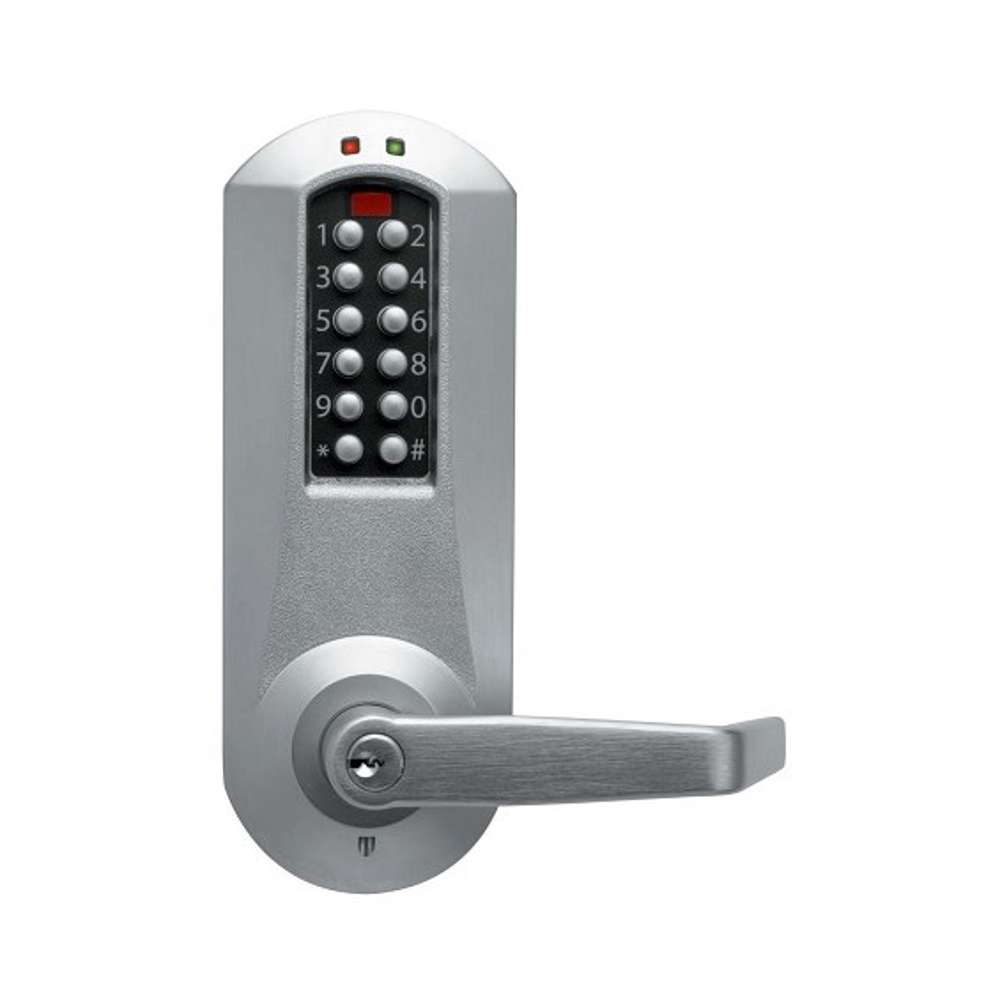

Kaba E-Plex Cylindrical Key in Lever Lock

SKU # SI/E5031XSWL-626

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.





Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Locking Device Options:

    Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
    Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
    American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without Deadbolt

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and accesspoints grow

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:

    Key-in-lever cylinders
    Small format interchangeable cores
    Large format removable cores

Operation Modes:

    PIN access
    Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels:

    Master Level—Performs all set-up and programming functions
    Manager Level—Administers common programming functions
    Access User Level—Entry granted with valid PIN
    Service Level—Codes for single event or single day access, programmable in advance
    Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters:

    Code length—Adjustable to accept 4 to 8 digits
    Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
    Relock time—Adjustable from 2 to 20 seconds

Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires
