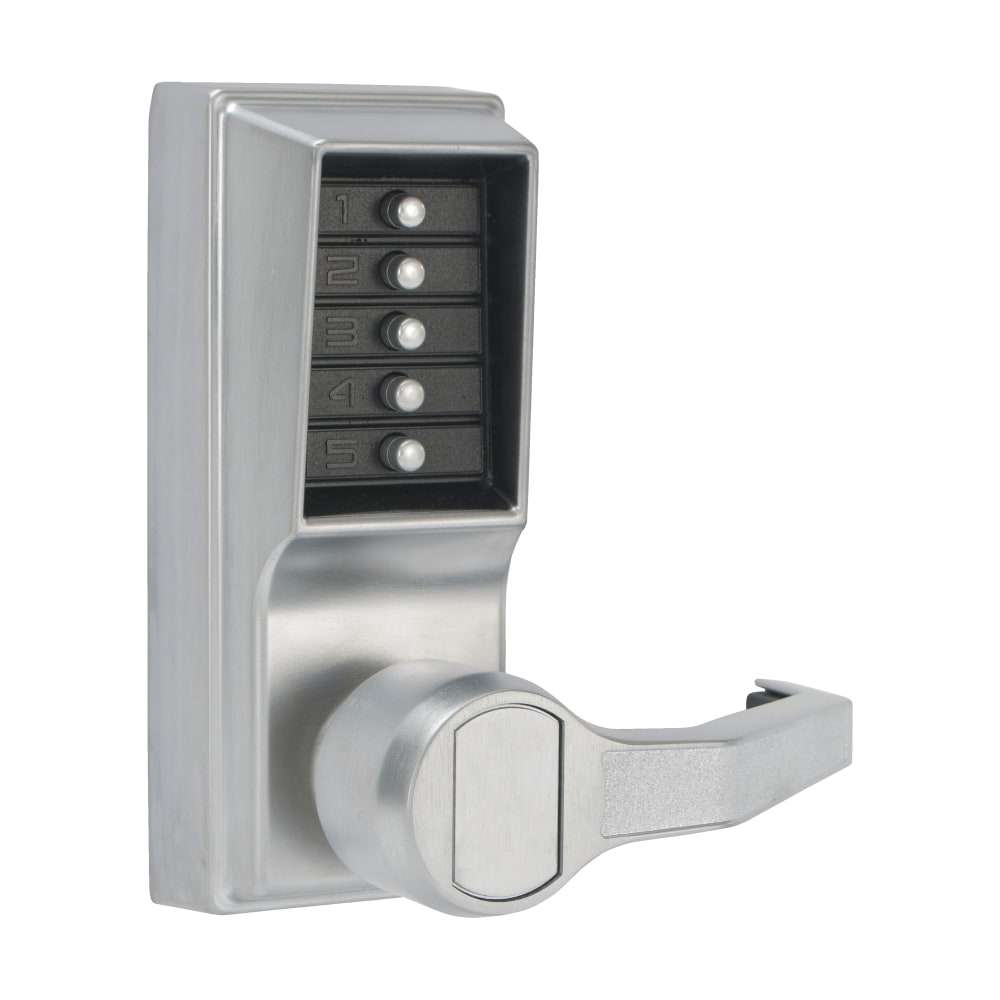

Kaba Simplex Combo Lever Lock, No Override LH

SKU # SI/LL1011-26D

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

US$368.40

Specifications:

Specifications:

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed; not field reversible
  • Economical: A cost effective access control solution

Mechanical Features

  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Standard Finish: Satin Chrome 26D (626))
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8.25 lbs. (3.7 kg)
  • Strike: Standard strike plate; ASA strike plate

Installation

  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
