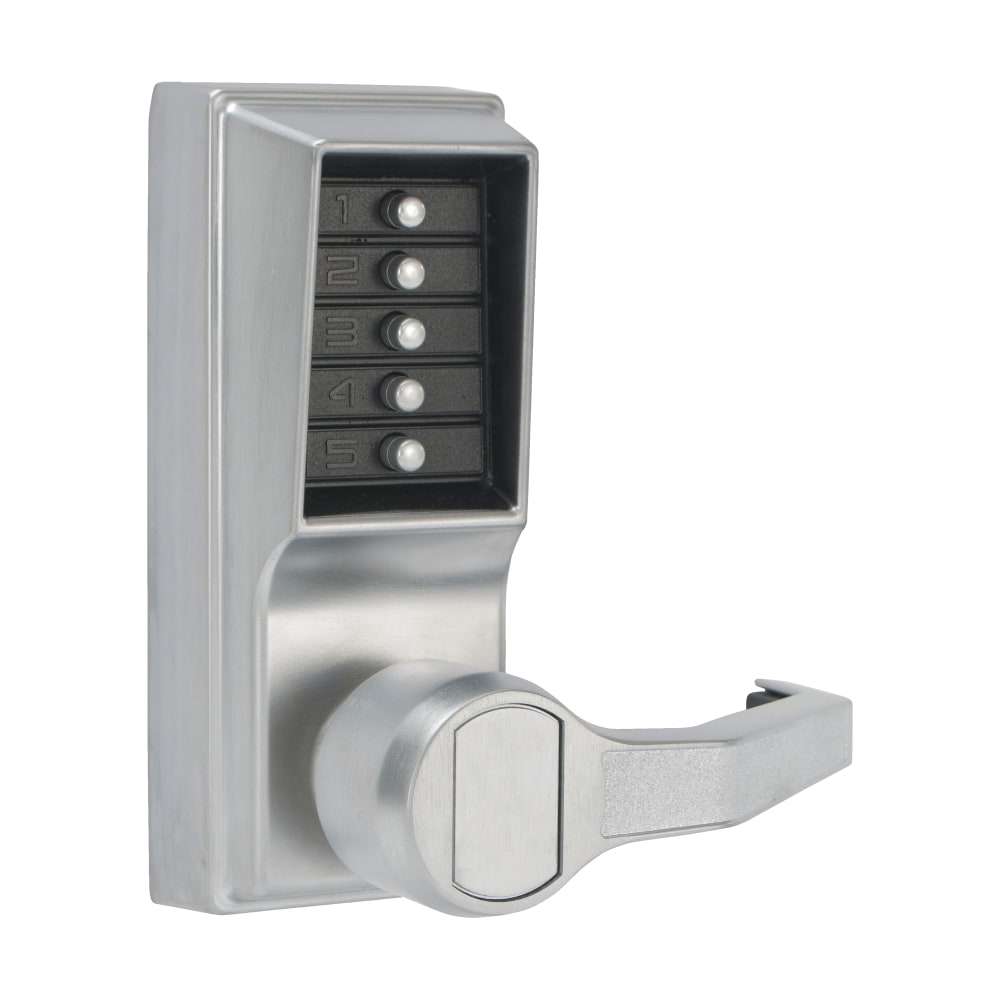

Kaba Access LL1031-26D-41 Cylindrical Lever Lock

SKU # SI/LL1031-26D

The Kaba Access LL1031-26D-41 Cylindrical Lever Lock

  • Eliminates the material and labor expense of battery replacements and has a single access-code.
  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: Standard strike plate; ASA strike plate
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Delivery: The Kaba Access LL1031-26D-41 Cylindrical Lever Lock is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$475.38

Description:

Description:

Kaba Access LL1031-26D-41 Cylindrical Lever Lock

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. Combination & Passage Entry Only. No Key Override. The passage mode allows access without using the lock entry code. The feature is activated from the inside with a thumbturn or a key (included). The pin access can easily be programmed at the door. One combination code is used per lock, made of any combination of one to five numbers. Retrofits cylindrical and tubular locksets with 2-3/4" backset. The 5 numeric pushbuttons are constructed with anodized aluminum and are vandal resistant. This lock is weather resistant.

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory-handed for Left Hand or Left Hand Reverse. Not field reversible
  • Pushbutton Access
  • Passage—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key

Specifications:
