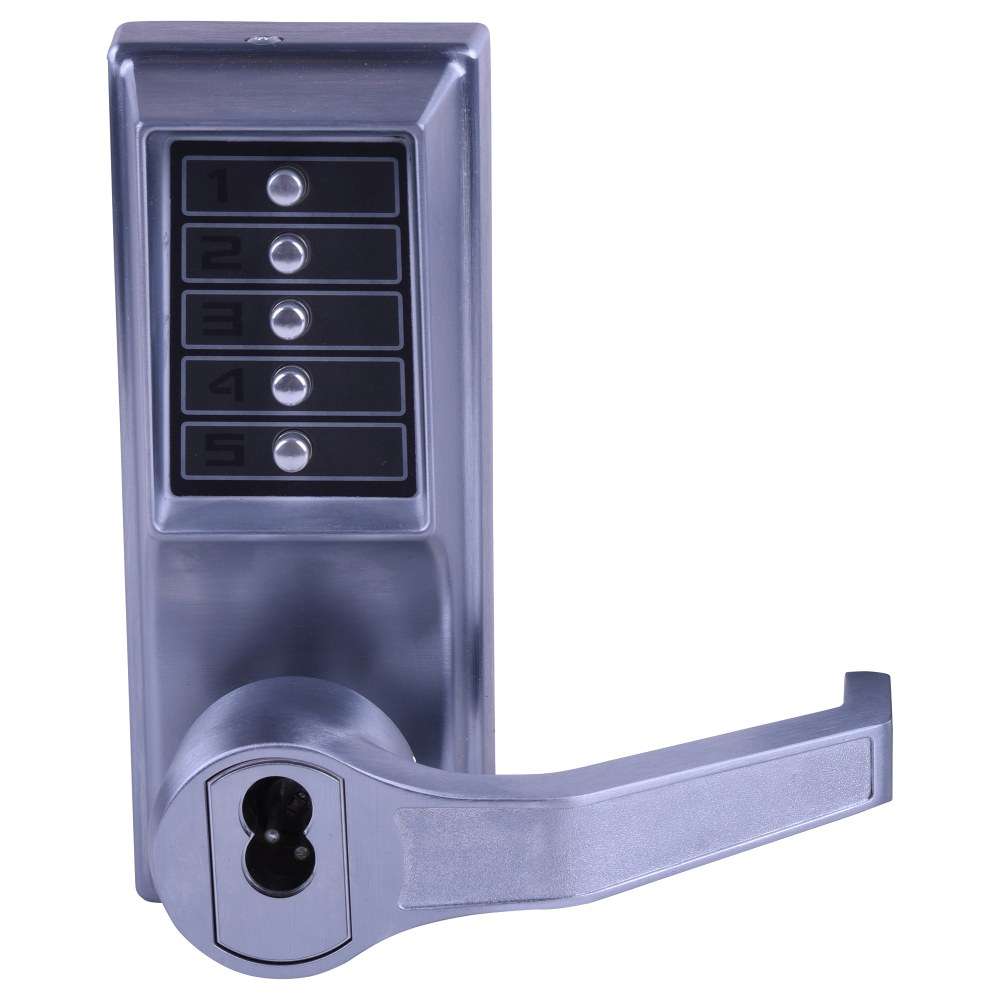

Kaba Access LL1076S-26D-41 Cylindrical Lever Lock

SKU # SI/LL1076S-26D

Kaba Access LL1076S-26D-41 Cylindrical Lever Lock

Product Features:

  • Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers
  • Vandal resistant, solid metal pushbuttons
  • Factory-handed; not field reversible
  • Standard Finish: Satin Chrome 26D (626)
  • Backset: 2 3/4" (70 mm)
  • Latch: 3/4" (19 mm) throw latch
  • Strike: Standard strike plate; ASA strike plate
  • Fire Rating: 3-hour UL/ULC fire rating for A labeled doors
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$480.70

Description:

Description:

Kaba Access LL1076S-26D-41 Cylindrical Lever Lock

The Simplex L1000 Series provides exterior access by combination while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

L1076: Combination Entry. Key Override (core not included). Interior Combination Change. Privacy (lockout)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.

  • A cost-effective access control solution
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Vandal-resistant, solid metal pushbuttons
  • Factory-handed; not field reversible
  • 5″ Minimum stile recommended
  • D.O.D. Compliant 5220.22M for supplemental access control
  • 3-hour UL/ULC fire rating for “A” labeled doors
  • Weather resistant

Key Override Options

  • B – Prepped for 6 or 7 pin SFIC (less core)
  • C – Prepped for Corbin Russwin 6-Pin LFIC (less core)
  • M – Prepped for Medeco/Yale/ASSA/Abloy LFIC (less core)
  • R – Prepped for Sargent LFIC (less core)
  • S – Prepped for Schlage FSIC, less core (Schlage large format-removable core sold separately)
