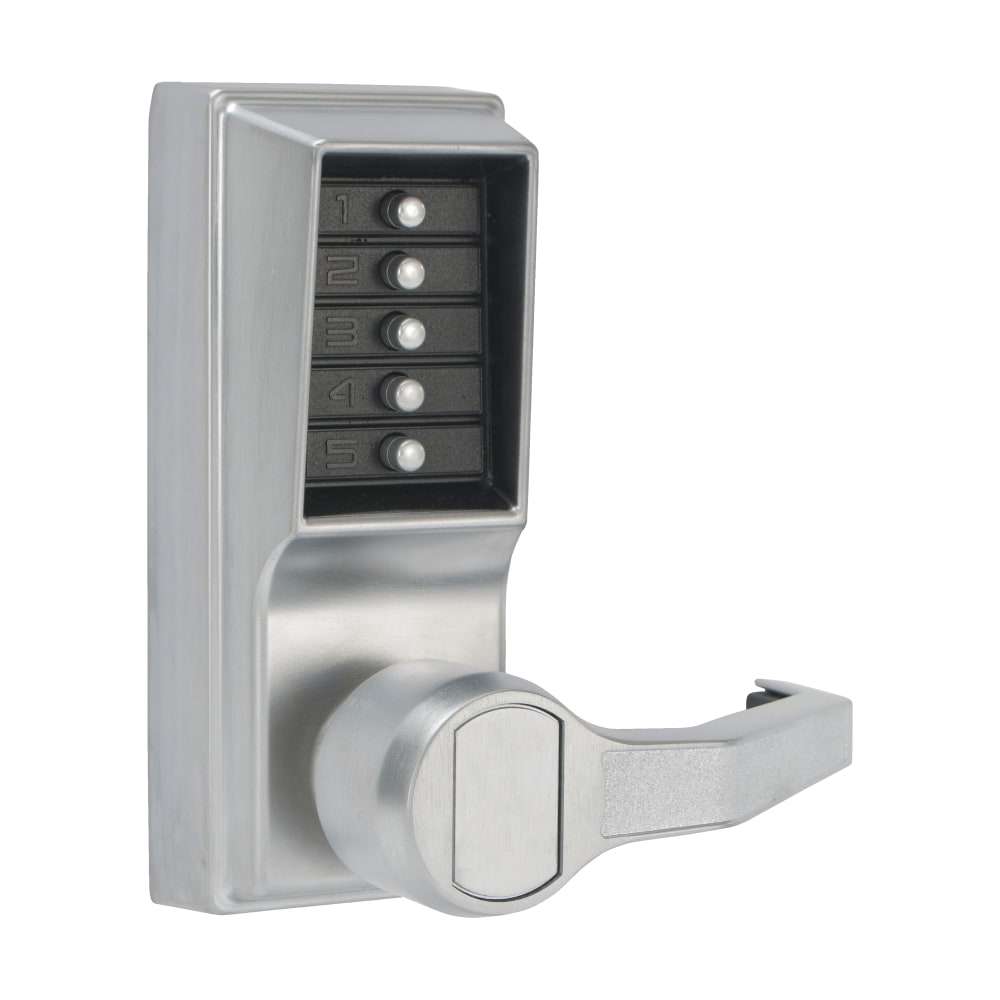

Kaba Access LR1011-026-41 Cylindrical Lever Lock
Features:
Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers
Vandal resistant, solid metal pushbuttons
Factory-handed; not field reversible
Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)
Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)
Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)
Strike: Standard strike plate; ASA strike plate
Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors
Operation Modes:
Combination Entry Only (model L1011)
Combination Entry and Passage (model L1031)
Combination Entry and Key Override (model L1021)
Combination Entry, Key Override and Passage (model L1041)
Passage option: Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)
Lockout option: Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override
only. (optional)
