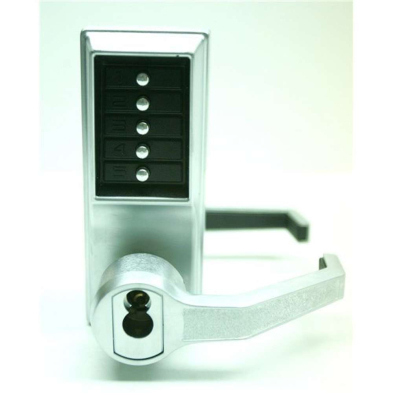

Kaba Simplex Combo Lever Lock, Schlage IC Prep RH

SKU # SI/LR1021S-26D

Kaba Simplex Combo Lever Lock, Schlage IC Prep RH

The Simplex L1000 Series provides exterior access through a pushbutton combination, allowing free egress. With a lever option, this mechanical lock eliminates the material and labor expense of battery replacements, has a single code, and is programmed via the keypad without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.

  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: Standard strike plate; ASA strike plate
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Delivery: The Kaba Simplex Combo Lever Lock, Schlage IC Prep RH is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$486.78

Description:

Description:

Kaba Simplex Combo Lever Lock, Schlage IC Prep RH

L1000 Series Pushbutton Lock with Lever by Simplex / Unican

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single-code and is programmed via the keypad without removing the lock from the door.

  • Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors.
  • Number of Codes: Single access code - one easy-to-manage code for all users.
  • Programming: Lock is easily programmed via keypad without removing lock from the door.
  • Handing: Factory-handed; not field reversible.
  • Economical: A cost effective access control solution.
  • Passage Mode (L1031 & L1041) - allows access without using the lock entry mode. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Door Thickness: 1-3/8" to 2-1/4".
  • Strike: T-Strike plate, ASA strike plate. DB strike box.
  • Backset: 2-3/4" backset.
  • Finish: Brass (US3), Antique Brass (US5) & Satin Chrome 26D (626).
  • Key Override (Optional): Key Override models (L1021 & L1041) accept removable core cylinders.
  • ** All Simplex Key Override models are sold Less Cylinder.**

Operation Modes:

  • L1011 - Combination Entry, No Key Override.
  • L1021 - Combination Entry with Key Override. Choose Keyway: Schlage (L1021S), Best (L1021B), Corbin Russwin (L1021C), Sargent (L1021R), and Medeco-Yale (L1021M).
  • L1031 - Combination Entry with Passage Mode Capability, No Key Override. Passage Mode: Access by combination or passage feature. Passage Feature controlled by either thumbturn or key cylinder, packed with both. The 1031 Model has no key override.
  • L1041 - Combination Entry with Key Override & Passage Mode Capability. Choose Keyway: Schlage (L1041S), Best (L1041B), Corbin Russwin (L1041C), Sargent (L1041R), and Medeco-Yale (L1041M). Passage Mode: Allows access without using the lock entry code, keeping the door unlocked even while closed. This feature is activated from the inside with a thumbturn or key.


Special Order Information: For pricing on any function, keyway, or finish of the Simplex L1000 Series not found on this page, please contact Taylor Security directly via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:

Literature:

Product Videos:

Product Videos:
