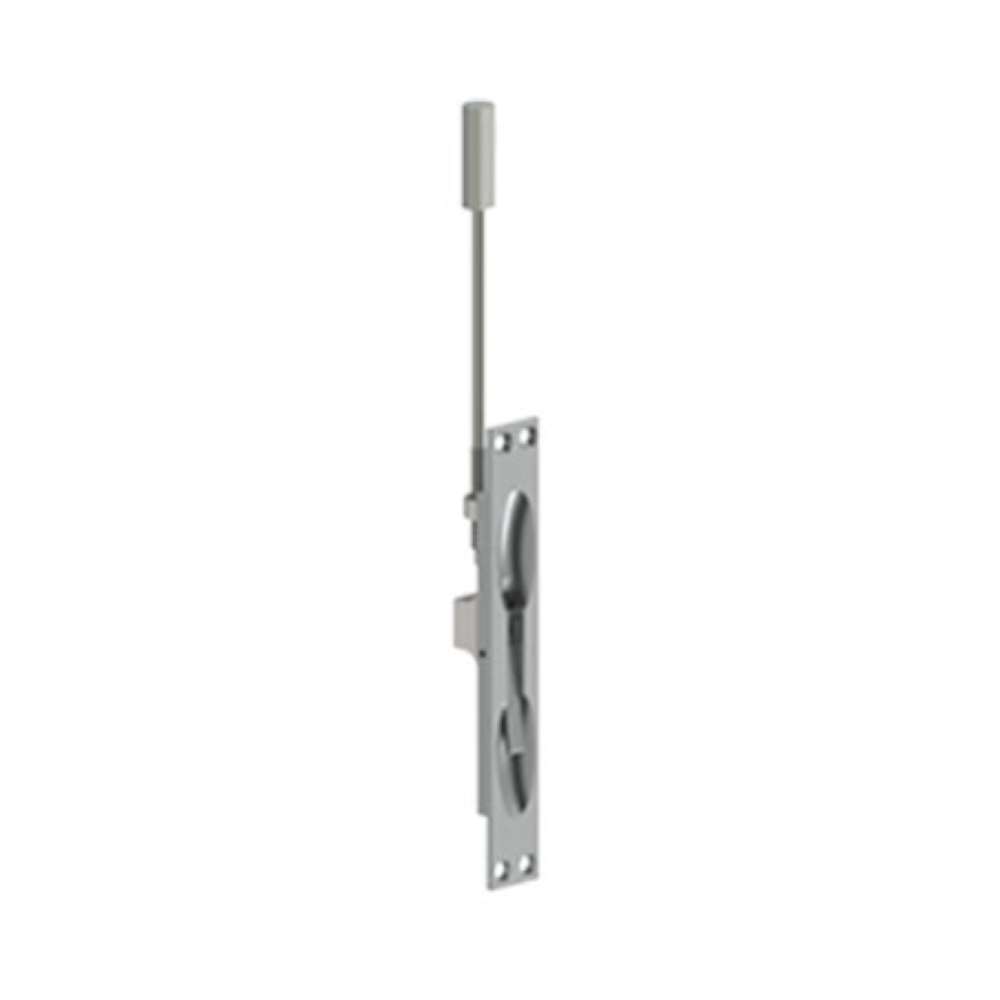

Hager 282D-US26D750 chrome Manual Flush Bolt for Metal Doors
Manual Flush Bolt for Metal Doors
Bolt Backset: 3/4" (19 mm)
Bolt Throw 3/4" (19 mm)
Certifications
- Three-hour fire rating for metal doors up to 4' wide by 10' tall
- Meets ANSI 156.16 for L04251
Faceplate 1" x 6-3/4" (25 mm x 171 mm)
Fasteners Eight #8 x 3/4" combo screws, Eight #8 x 1-1/2" combo screws
Finishes US3, US4, US5, US9, US10, US10B, US15, US15A, US19, US26, US26D
Guide Plate Height 2" (51 mm)
Guide Plate Width 1" (25 mm)
Material Brass faceplate with steel components
Mortise Strike Length 2-1/4" (24 mm x 57 mm)
Mortise Strike Width 15/16" (24 mm)
Optional Features Rod Length: 18" (457 mm), 24" (610 mm), 30" (762 mm)- Specify 282R
Rod Length 12" (305 mm) from center of face to corner of door
