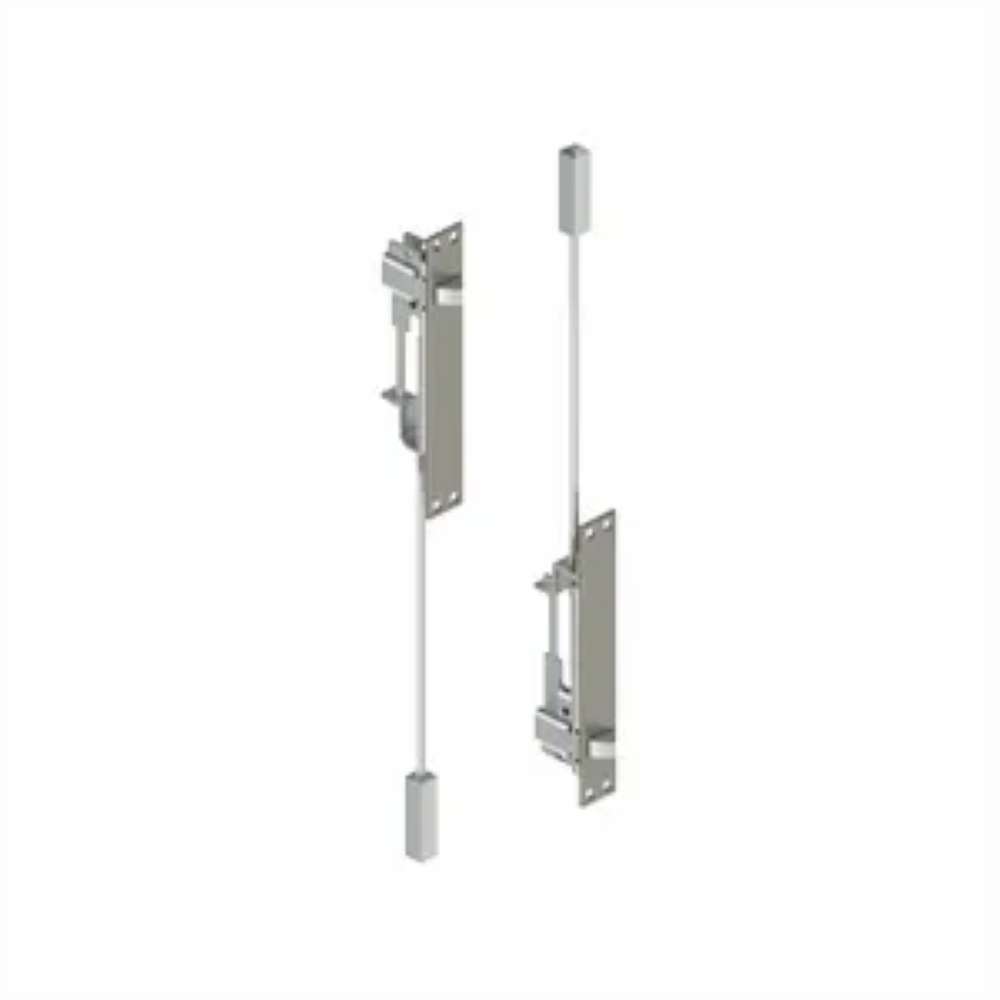

Hager 292D-32D Auto Flush Bolt metal drs Steel 3/4in blt 3hr

SKU # HG/292D-32D

Read Review(s) | Log in to Review

  • Contains two 292S flush bolts
  • Thermal lock automatically locks inactive door under high fire/heat conditions
  • 280X dust proof strike are recommended for use with these sets
  • Used in pairs at top and bottom of inactive door
  • Fully automatic- bolts retract when active door is opened; bolts extend when active door is closed
  • Non-handed
  • Bolt head rods are adjustable
  • Product Description
  • Automatic Flush Bolt Set for Metal Doors
US$110.00

Description:

Description:

Hager 292D-32D Auto Flush Bolt metal drs Steel 3/4in blt 3hr

Bolt

Backset: 3/4" (19.5 mm)

Bolt Throw

3/4" (19 mm)

Certifications

  • 3-hour fire rating on metal doors up to 4' wide x 8' tall (A label rating)
  • Meets ANSI 156.3 Type #25

Faceplate

1" x 6-3/4" (25.6 mm x 171.8 mm)

Finishes

US10B, US32D

Flattened Round Bolt Head 1/2" (13 mm)

Includes 2 each 292

Material

Stainless steel with steel components

Mortise Strike Length 2-1/4" (57 mm)

Mortise Strike Width 15/16" (24 mm)
