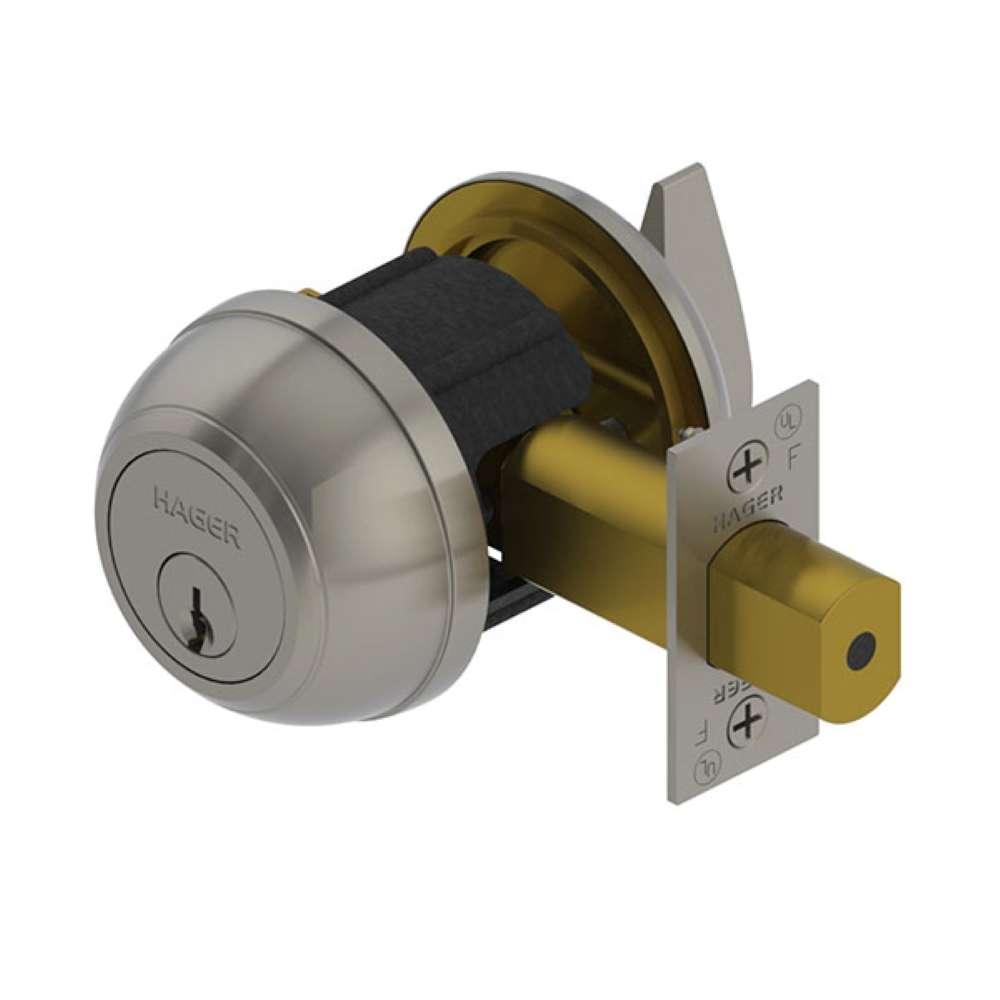

Hager 3118-234-US26D-SCC-KD Grade 2 Class Deadbolt 2-3/4 KD
Applications Heavy Duty Commercial
Backsets
- 2-3/4" (70 mm) Standard
- 2-3/8" (60 mm) Option
Certifications
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.36, Grade 1
- ANSI A250.13 Severe Windstorm Compliant
- Miami Dade County, FL NOA #18-0816.08
Cylinders/Cores
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Deadbolt
- 1" (25 mm) throw, brass with concealed hardened steel roller
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
Door Thickness
- 1-3/4" - 2" (45 mm - 51 mm) - Standard
- 2-1/4" (57 mm) - Optional for conventional keyed only
Exposed Trim Wrought Brass or Bronze
Finishes US3, US4, US10B, US26 and US26D
Functions Classroom (E2171)
Keys Two operating keys supplied per lock
Keyway Schlage C - Standard, other keyways available
Notes SFIC option available (Cores are sold separately - standard)
Handing is field reversible
Options Split Finish
Additional Deadbolts and strikes available
Strikes
- 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike standard
- Optional ASA strike available
