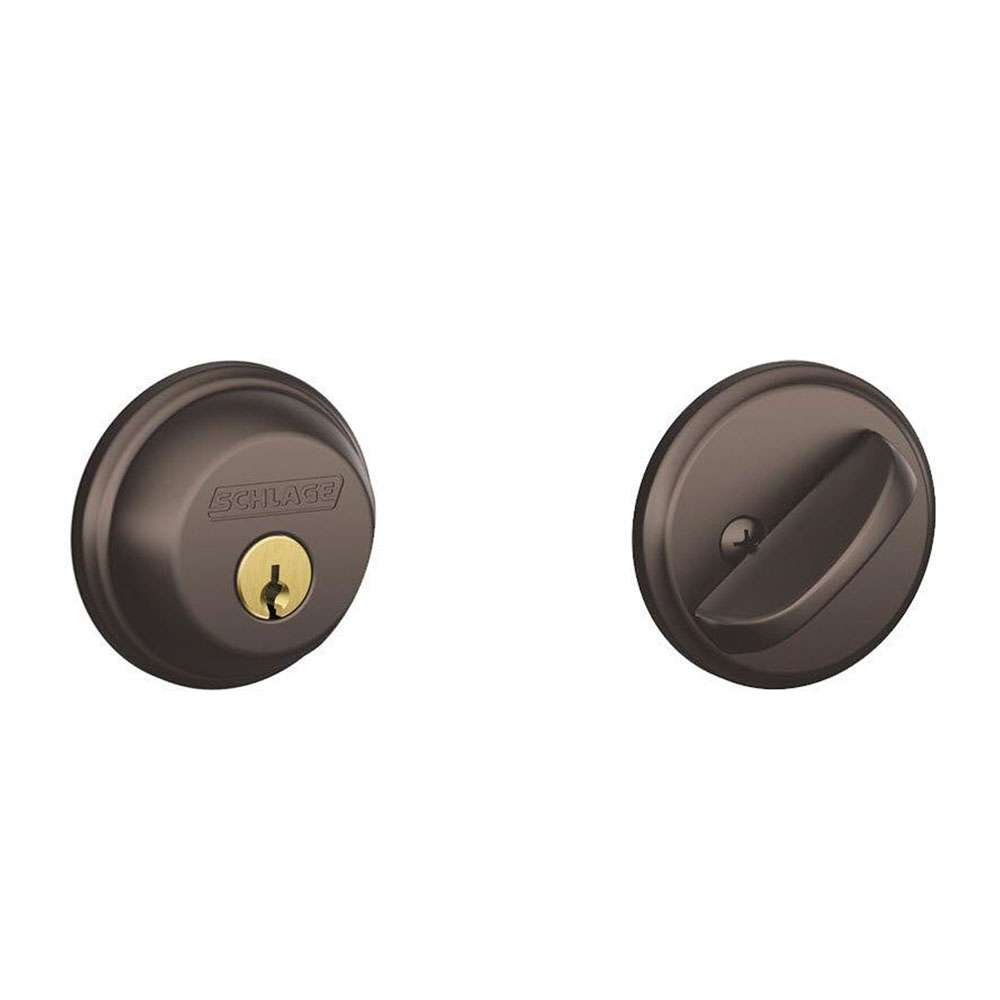

Schlage B60N-613 Deadbolt, Single Cylinder
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Door Prep: Required 1" door prep for larger bolt housing.
Latch: 1" x 2-1/4" (25mm x 57mm) Round Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
Strike: 1-1/8" x 2-3/4" (29mm x 70mm) Round Corner Faceplate.
Functions:
- Single Cylinder: Key operates deadbolt from outside; turn piece operates deadbolt.
Cylinder: 5-Pin, Schlage "C" Keyway (SC1), Keyed Different (KD).
- Pin & Tumbler (Standard)
Keying Options: See "Keying" for the following keying options on the B60 Deadbolt:
- Keyed Alike: 1 key works all locks.
- Master Keyed: Locks are Keyed Different (KD) with 2 keys per lock, 1 Master Key opens all locks.
- Construction Key: PK.
