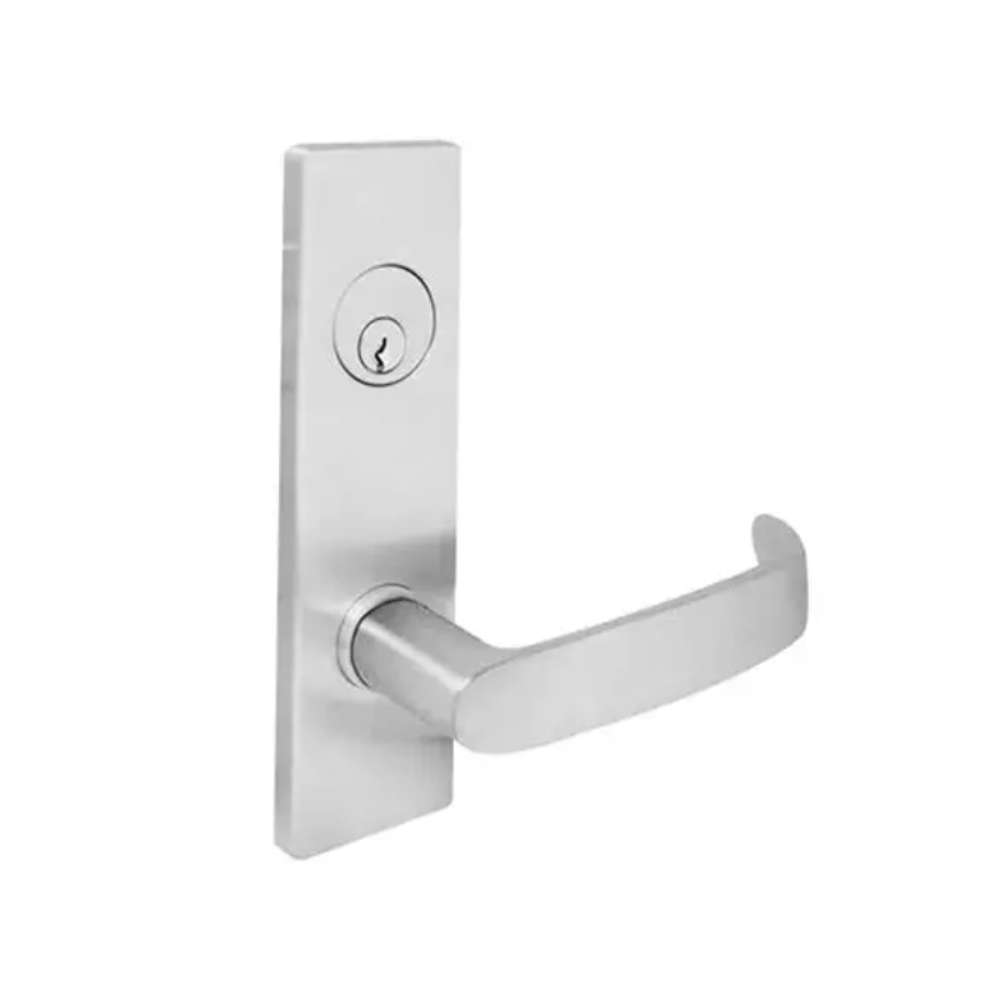

Town Steel MSE-R-LW-20-S-626 Rejuvenator Entrance/Apartment Single Cylinder Sentinel Satin Chrome
The MSE Series Mechanical is an ANSI/BHMA A156.13 Grade 1 Certified mortise lock is UL 10C 3-hour rated, with a variety of commercial and designer levers to choose from.
Backset
2-3/4", standard
Door Thickness
1-3/4", standard
Handing
Field reversible
LH / RH / LHR / RHR
Mortise Chassis
Clutched*
Rigid
*Available for certain functions only
Cylinder
6-pin with Schlage® “C” keyway, standard
Faceplate
1-1/4" x 8"
Strike
1-1/4" x 4-7/8", ANSI strike, plated / stainless steel
Deadbolt
1” throw, stainless steel, with anti-saw hardened pins
Latch Bolt
3/4” projection, stainless steel, split, anti-friction
Guard Bolt
Stainless steel
Stop Works
Stainless steel, rocker type
