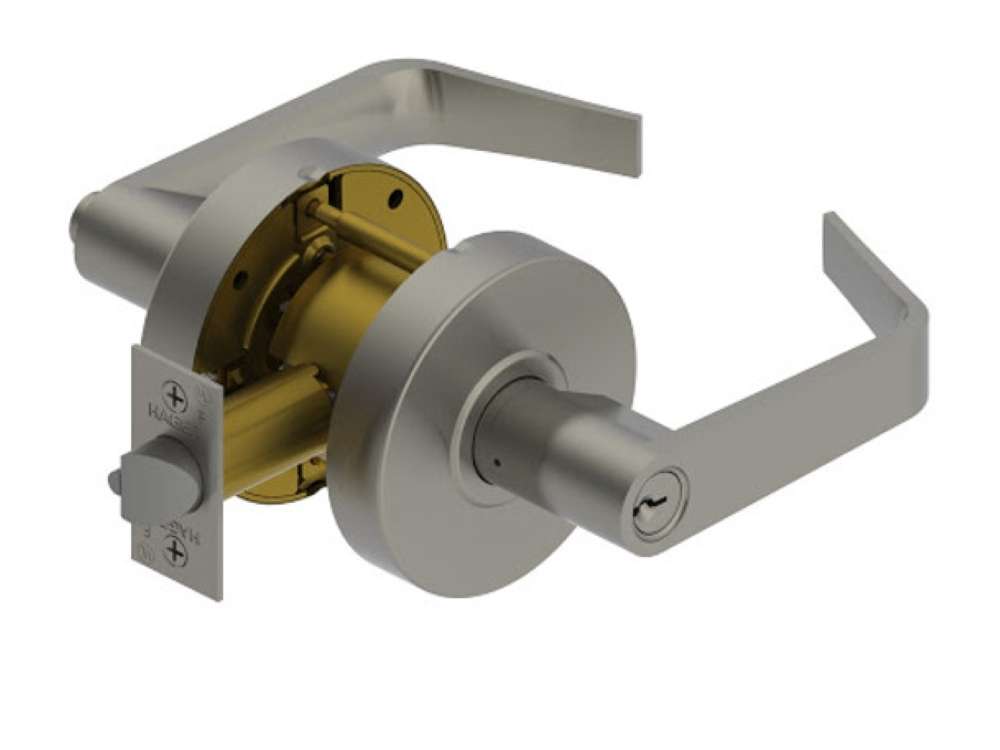

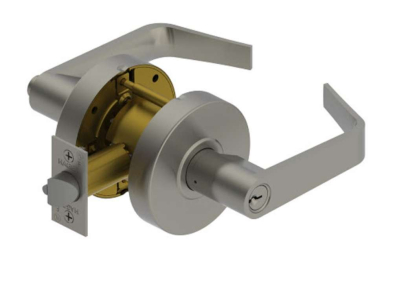

Hager 2550-234-US26D-WTN-NC/IC Entr Chrm Withnell No IC Gd 2
EXPOSED TRIM:
- Wrought brass, bronze, and stainless steel
- Lever is zinc based, plated to match BHMA symbols
LOCK CHASSIS:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Removable thru-bolts
- Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty
- Non-Clutching levers
ROSE DIAMETER: - 3-11/32" (85 mm)
KEYS: - Two operating keys supplied per lock
CYLINDERS/CORES:
- Brass, keyed different - C keyway
- Other keying options, including keyed 6-pin, available from the factory
- Drilled 6-pin, keyed 5-pin
- Small Format Interchangeable Core housing available
- SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
DOOR THICKNESS: 1-3/8" - 2" (35 mm - 51 mm)
BACKSET:
- 2-3/4" (70 mm) standard
- 2-3/8" (60 mm) optional
LATCHBOLT:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" backset
- Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
STRIKES:
- ANSI 4-7/8" x 1-1/4" (32 mm x 124 mm) strike standard
- Optional strikes available
FINISHES: - US3, US10B, US26D
FUNCTIONS:
- 10 - Passage,
- 17 - Dummy,
- 25 - Exit,
- 27 BTB Dummy,
- 40 - Privacy,
- 50 - Office,
- 53 - Entry,
- 70 - Classroom,
- 80 - Storeroom
LEVER OPTIONS:
- Archer, Withnell levers
OPTIONS:
- Lead lined
- Tactile warning
