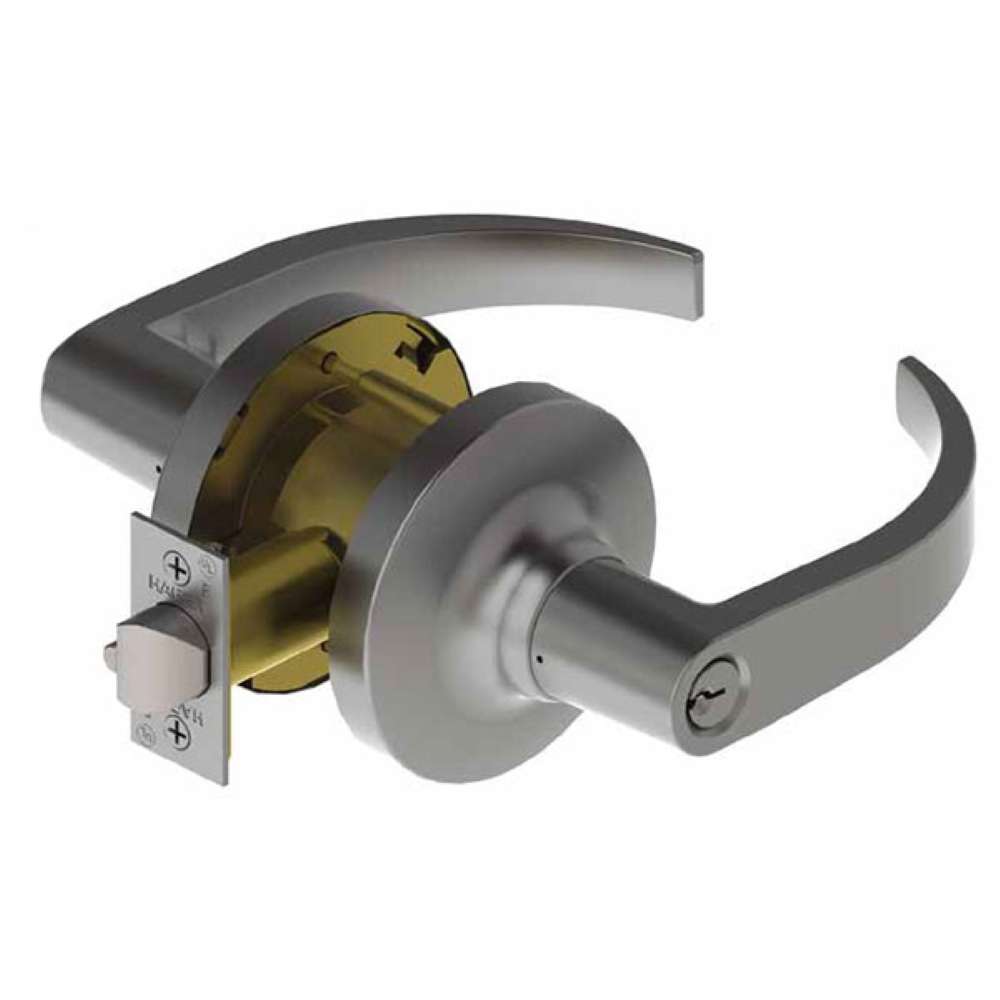

Hager 345023426DARCSCCKD Office 23/426D Archer C Key Cyl KD
Applications
- Commercial
- Industrial
- Institution
Backsets
- 2-3/4" (70 mm) - standard
- 2-3/8" (60 mm) - optional
- 3-3/4" (94 mm) - optional
- 5" (128 mm) - optional
Certifications
- BHMA Certified ANSI A156.2, Series 4000, Grade 1
- ADA Compliant ANSI A117.1 Accessibility Code
- ANSI A250.13 Severe Windstorm Resistant Component
- UL/cUL Listed for all functions up to 3 hours for "A" label single doors (for double door application, UL/cUL Listed when used with 3/4" latchbolt)
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Miami-Dade County, Florida NOA #22-0816.08, Exp. Aug. 16, 2027. Must specify.
Cylinders/Cores
- Brass 6-pin, keyed different - Schlage C Keyway - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other keying options, including keyed 6-pin, available from factory
- Zero bit cylinders will be 6 pin - standard
- SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
- Large Format Interchangeable Core option available
- LFIC zero bitted or combinated, brass 6-pin sold separately - Schlage C keyway only
Door Thickness: 1-3/8" - 2" (35 mm - 51 mm)
Lever: Cast zinc
Rose: Wrought brass or stainless steel
- Intruder Classroom function has locking indicator arrow stamped on the interior rose
Features
- No exposed mounting screws
- Non-handed
- Free wheeling levers
Finishes US3, US4, US10B, US26, US26D and BLK
- Anti-Microbial Coating (US26D finish only)
Functions
- 10 - Passage
- 17 - Dummy
- 40 - Privacy
- 50 - Office
- 53 - Entry
- 70 - Classroom
- 73 - Corridor
- 80 - Storeroom
- 82 - Institution
- 95 - Intruder Classroom
Installation
- Comes pre-set for 1-3/4” thick doors for quicker installation
- Threaded mounting bracket adjusts to proper door thickness in seconds
- Only two screws needed to fully secure inside and outside assemblies to the door
- Screws will ratchet tight letting installer know the lockset is properly tightened
- Roses and levers snap on in seconds
Keys: Two operating keys supplied per lock
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
- Square corner faceplates standard, round corner available
- 3/4" (19 mm) latch available
Lever Options Archer, August, Withnell
Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance. Free wheeling levers: Thru-bolt mounting levers
Notes
- 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
- Latch hole - 1" (25 mm) diameter (edge bore)
Options
- Lead lined
- Tactile knurling
- Split finish
- Additional latchbolts and strikes available
- Rose Diameter
- 3-17/32" (90 mm) levers; 3" (76 mm) knobs
Strikes
- 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike - Standard
- 3933 T-Strike - Optional
- 3934 Full Lip Strike - Optional
- 3958 - Full Lip Strike, Round Corner - Optional
