Lockmaster LKM10KPSMW Panic Bar Exit Surface Wiring Kit
Touchless Operation - By integrating an automatic door operator (not included) with a variety of push plate or wave switches the door is now completely automatic. Note, the FF-L-2740B combination lock must be unlocked (bolt is retracted).
Door Applications - Ideal for use with heavy specialty STC/RF doors.
SECURITY
Combination Lock is Unlocked (bolt is retracted) - the LKM10K and the ABR motor are fully enabled to automatically retract the dead bolt from the strike.
Combination Lock is Locked (bolt is extended) - the LKM10K is mechanically blocked and the ABR motor is disabled for longevity of the ABR motor.
BENEFITS
Interchangeable - You can install the LockOne™ Lock Series in your facility to maintain a consistent look as the exterior trim has not changed.
Retrofittable - Remove the existing LKM10K inside base plate and replace with the LKM10K ABR base plate.

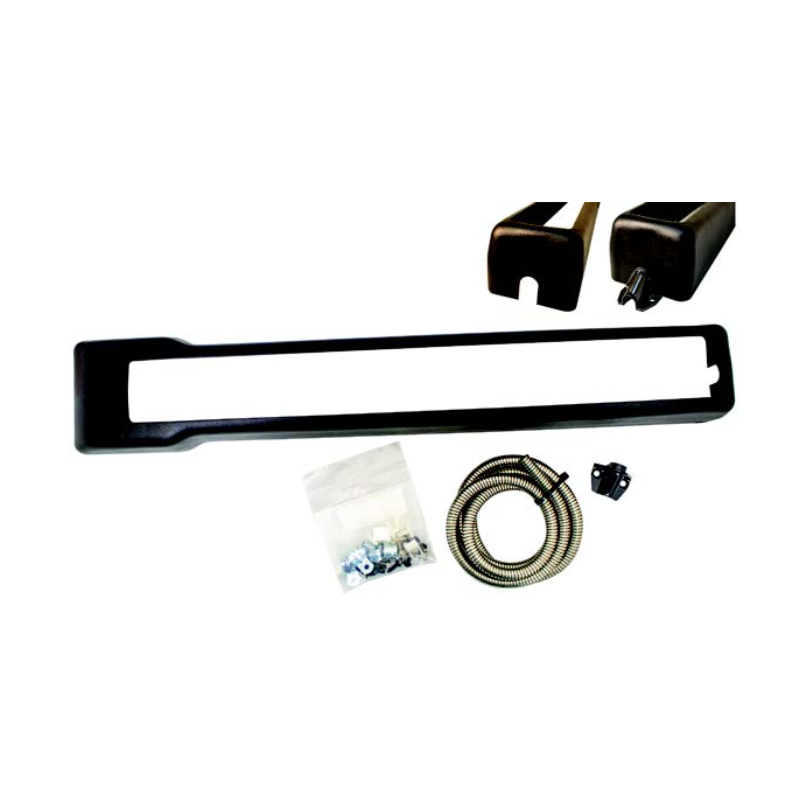

Internal Raceway - If an internal raceway is not available we offer our optional Surface Mounted Wiring Kit.
Field Tested - The LKM10K ABR version was field tested with a variety of heavy duty, low energy door operators.
Key Override Option - Key Override is standard on all LKM10K models. However, it is optional to utilize, so it can be added with little effort at a later date if necessary. Key Override allows a key to “override” the access control device only. It will not override the combination lock. This capability is particularly important during the event of power outage, failure or malfunction of an access control device, or an emergency that requires expedited entry.
Note: Cylinder not included
