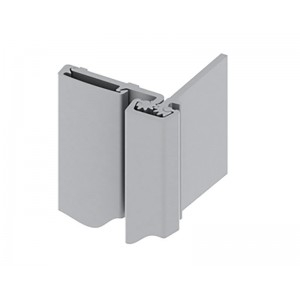

Hager 780-053HD-83-CLR Half Surface Continuous Geared Hinge

SKU # HG/780-053HD-83-CLR

The Hager 780-053HD-83-CLR Half Surface Continuous Geared Hinge is a Heavy Duty Half Surface Continuous Geared Hinge.

 Specifications include:

  • Heavy Duty
  • Half Surface Hinge
  • 780 Series - Half Surface
  • Clear Anodized Satin Aluminum
  • Frame leaf alignment rib for proper hinge location
  • - Security moldings
  • - 1/8" (3 mm) inset
  • Length 83 inches (2108 mm)
  • Clearance: - 5/32" (4 mm) minimum recommended hinge side - Plus standard lockside clearance
  • Fasteners: - 1/4-20 x 1-1/4" Sexbolt (Screw + Post)  #12-24 X 11/16" Flat Head Self-Drill Screws
  • Door Reinforcement: - None required
  • Frame Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
  • Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs)
  • Material: - Aluminum 6063-T6
US$212.18
