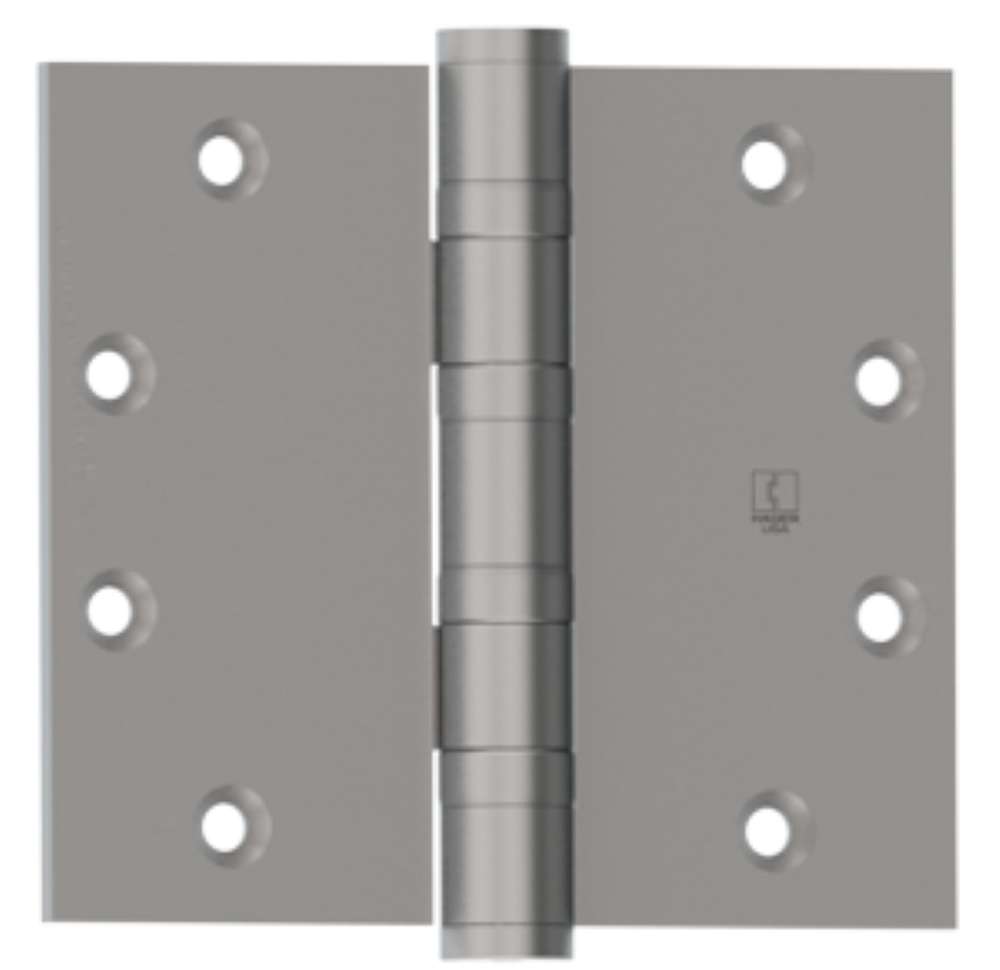

Hager BB1168-5X5-26D Chrome Five Knuckle Ball Hvy Hinge 5x5in
Applications
For use on heavy weight doors and doors requiring high frequency service
Certifications ANSI A8111
Electric Modifications
- EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Features
- Four ball bearings
- Removable or non-removable pin with button tip and plug
- Available in two different leaf sizes
Finishes LS, USP, US3, US4, US10, US10A, US10B, US15, US26, US26D
- Additional finishes may be available, please contact Hager for availability and lead time.
Fire Rating
Complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles 5
Material Steel with Steel Pin
Options
- Stamped with UL logo when ordered for export
- Unequal top/bottom available in non-removable or removable pin
