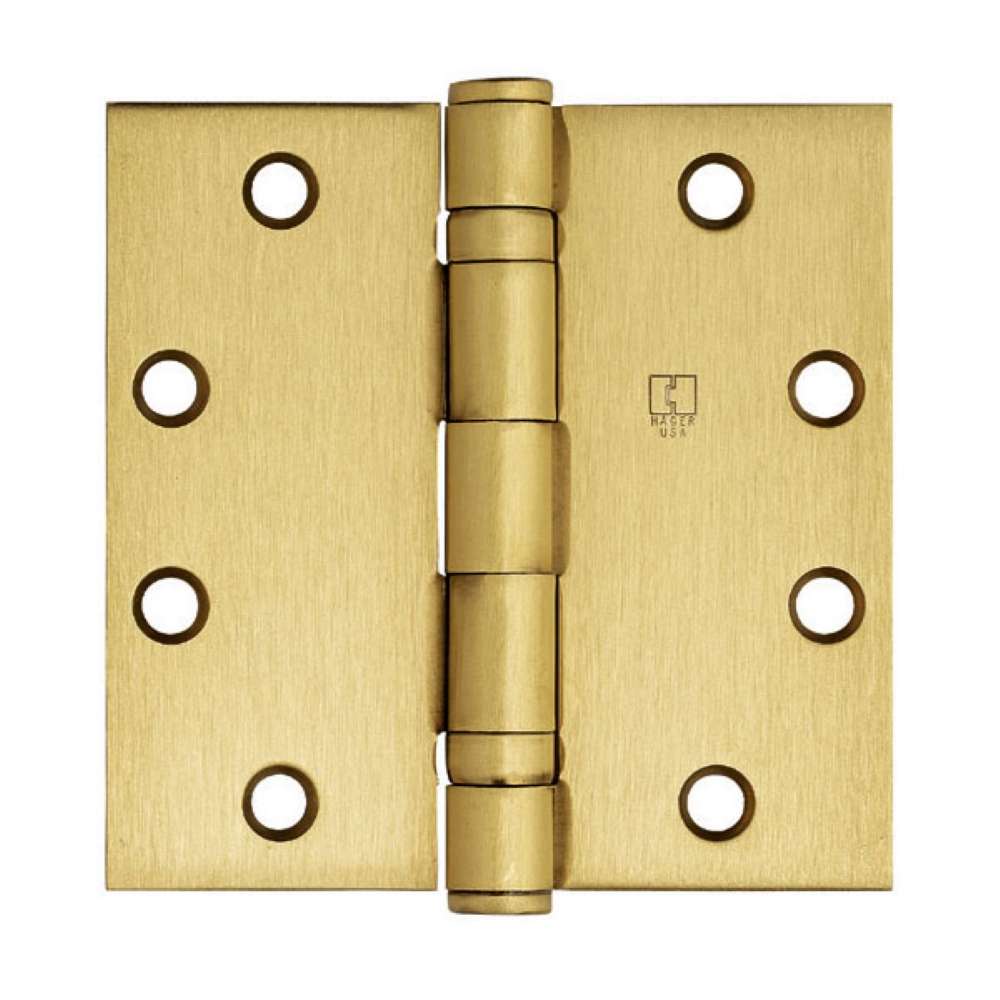

Hager BB1191-5X4.5-3 Full Mort Stndrd Ball Hinge 5x4.5in Brss
Applications
For use on medium weight doors or doors requiring medium frequency service
Certifications
- ANSI A2112 (Brass)
- ANSI A5112 (Stainless Steel)
Features
- Non-rising removable pin with button tip and plug. Two ball bearings.
- 1/16" swage standard.
Finishes L1, US3, US10, US10B, US15, US26, US26D, US32, US32D
- Additional finishes may be available, please contact Hager for availability and lead time.
Fire Rating Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles 5
Material Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Options NRP (Non-removable pin)
Stamped with UL logo when ordered for export 1/4" radius
