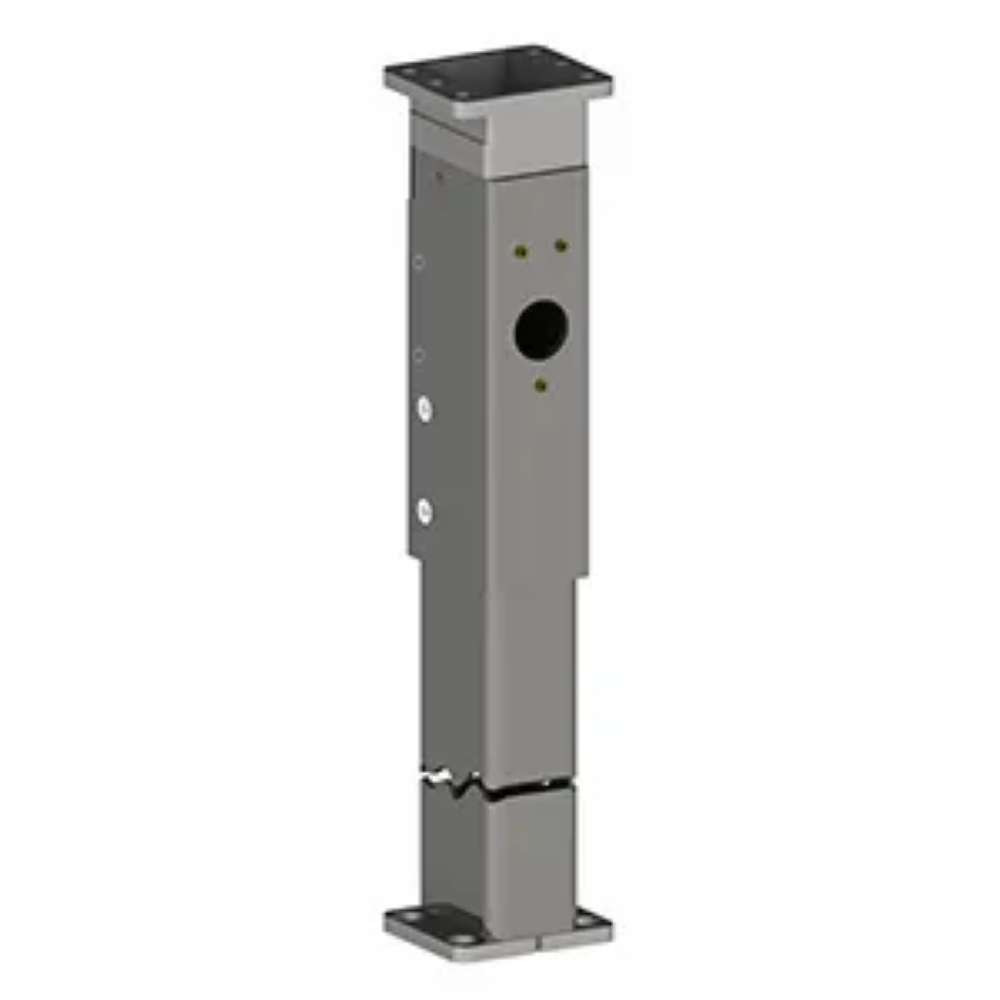

Hager 4900T-7-USP 96in USP Panic Keyed Removable Mullion Gry
- 96” (2438 mm), non-fire rated keyed removable mullion
- 4900 Series consists of a mullion, top and bottom brackets, and screw pack
- UL listed for 3 hours on fire rated pairs of doors up to 8 feet by 8 feet
- Designed for use on double door openings with rim devices, providing increased security and tighter closure, while providing easy adaptation for full width access, with 4500, 4600 and 4700 Series Exit Devices
Certifications: UL/cUL/Warnock Hersey listed for fire rated pairs of doors up to 8’ (2438 mm) X 8’ (2438 mm)
Mullion: 2” x 3” (51 mm x 76 mm) – 11 gauge steel tube
Other available dimensions: 84" (2134 mm) and 120" (3048 mm)
Cylinders:
- Solid brass 6-pin rim cylinders, 3901, sold separately
- Conventional cylinder, C keyway - Standard
- Small Format Interchangeable Core sold separately
Fasteners:
- Four (4) 8 - 32 x 3/4” (19 mm) FPHMS
- Four (4) 5/16” - 18 x 5/8” (16 mm) FPHMS
- Two (2) 5/16” - 18 x 1-1/2” (38 mm) FPHMS
- Two (2) 3/8” Wedge anchors
Top Fitting:
- Latching head allows the mullion to be removed in seconds
- Mullion can be locked in place without the use of a key
- Dead latch on fire rated device
Shims:
- 1/2” (13 mm) and 5/8” (16 mm) shims included (top)
- 1/8” (4 mm) shims included (bottom)
Strikes:
- Non-fire rated mullions use standard Rim strike supplied with exit device
- Fire rated strike and hook kit, 4912 (4500 Series) or 4916 (4700 Series), must be purchased separately
- Panic-rated mullions use standard rim strike supplied with exit device
Finish: Grey Primer
