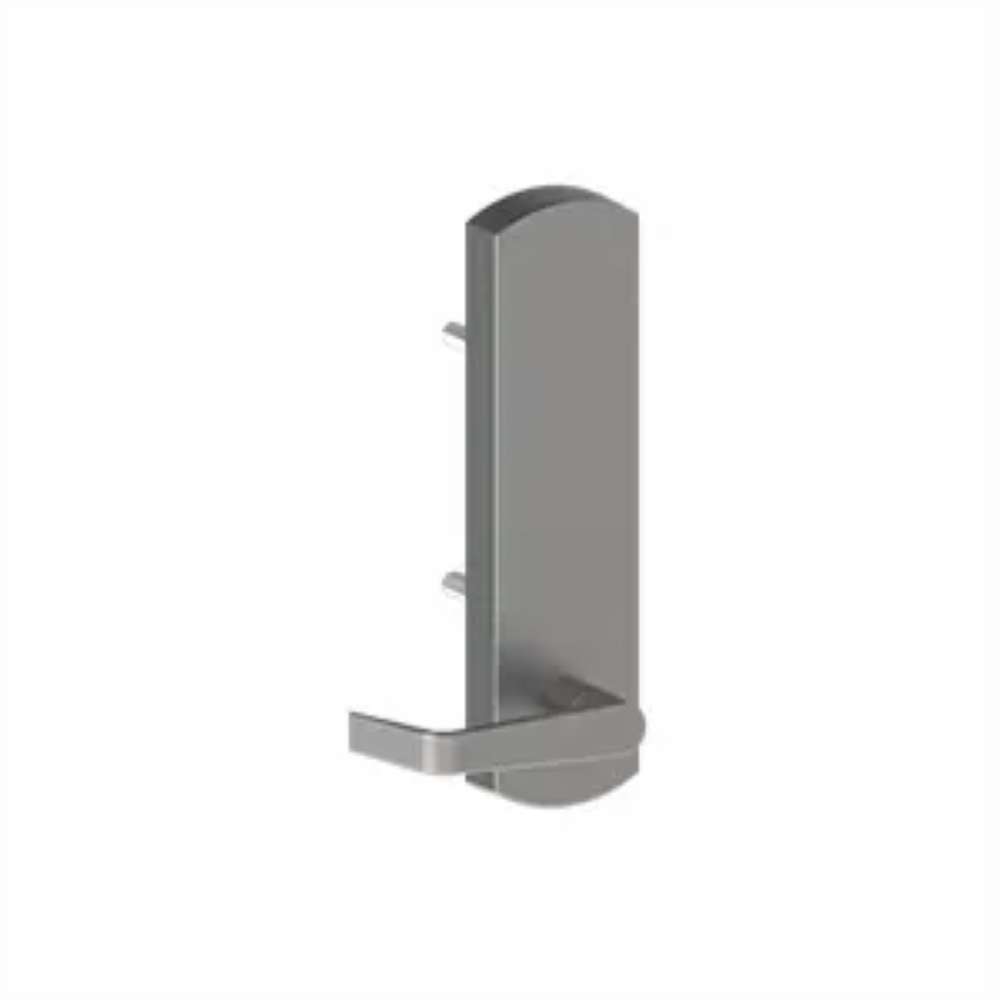

Hager 45BE-AUG-26D Blank Escutcheon August Chrome Rim
- BE - Blank Escutcheon Function 14, always operable
- CE - Cylinder Escutcheon Function 08, key locks/unlocks
- DT - Dummy Trim Function 02, pull when dogged down
- ET - Electric Escutcheon Trim (E05/E06)

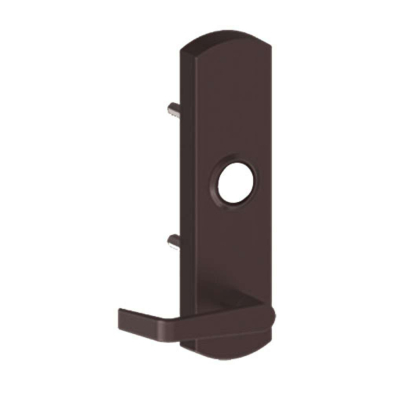

- NL - Night Latch (1-3/4” to 2-1/2” doors)Function 03, key retracts latchbolt
- PD - Pull Plate Dummy Trim (Not available for CVR device) Function 02, pull when dogged down
- PN - Pull Plate Night Latch (Not available for CVR device) Function 03, key retracts latchbolt
- PT - Thumbpiece Entrance (Not available for CVR device) Function 05, key locks or unlocks thumbpiece
Certifications
- ANSI/BHMA A156.3-2014 Grade 1
- Complies with ANSI A117.1 for accessible buildings and facilities
- Cylinders/Cores
Rim cylinder 3901 with long tailpiece, sold separately
Escutcheons
2-3/4" x 10-3/4" (70mm x 273mm)
Finishes
US3, US4, US10B, US26, US26D, BLK
Lever Options
Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, Withnell (rigid lever)
Projection
- 2-13/16" (71mm) for Archer
- 2-7/8" (73mm) for August
- 3-3/8" (86mm) for Charles
- 3-1/16" (78mm) for Johnston
- 3-17/32" (90mm) for Joshua
- 3-3/16" (81mm) for Louis
- 3-13/32" (87mm) for Warren
- 3-1/2" (89mm) for William
- 2-11/16" (68mm) for Withnell
