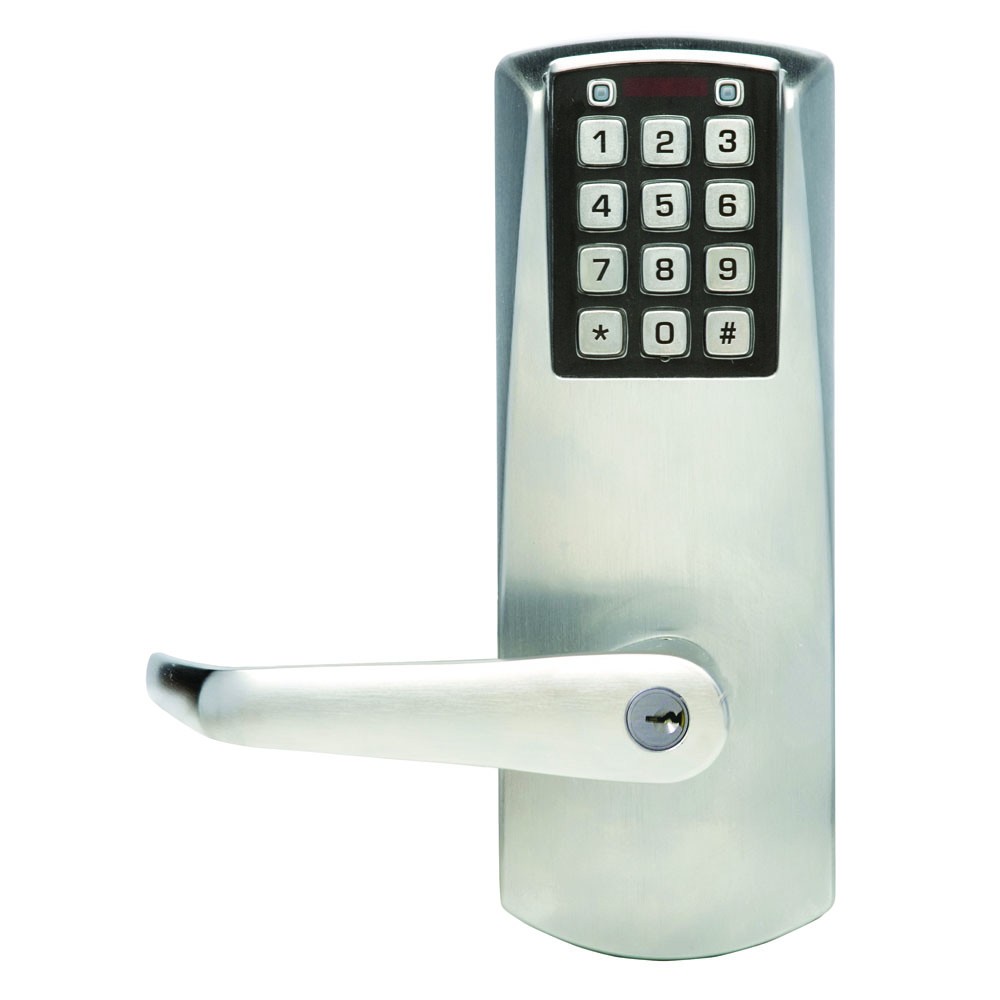

Kaba Access E-Plex Electronic Access Locksets

The Kaba E-Plex 2031 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Verifies exterior access while allowing free egress.


G.S.A. Contract Holder
This item is available on our
GSA contract # GS-07F-5498R
Pricing varies based on options selected below.
US$294.12

Specifications:

Specifications:

  • No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Number of Codes: Multiple Users—100 Codes
  • Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field
  • Audit Trail: The most recent 1,000 Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.
  • Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
  • Key Override (Optional): • Optional Key-in-Lever cylinder in Schlage "C" Keyway with black Kaba cap • Small format—Best and equivalent (6 or 7-pin length)
  • Operation Modes:
    • PIN access
    • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
    • Lockout
  • Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
  • User Parameters: Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds
  • Power: Battery Powered—Batteries located in outside housing; offers quick and easy battery replacements (three AA Alkaline batteries provide up to 100,000 cycles); lock data is maintained if batteries fail.

Mechanical Features

  • Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
  • Finishes: Satin Chrome 626 (26D) housings and levers. Optional: Satin Brass 606 (04) housings and levers, or Dark Bronze 744 (10B) housings and levers
  • Backset: Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset Mortise: 2¾" (70 mm) backset
  • Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike
  • Key Override Options
    • Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
    • Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
  • Ease of Installation: No wiring to or through the door—no risk of pinched wires
  • Door Preparation: Cylindrical—ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)
  • Door Thickness: Cylindrical Model: 1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)
  • Items Supplied Include: Cylindrical —Lock assembly, installation manual, template, quick reference guide, operations manual
  • Additional Items Supplied with Includes Universal Kaba 1539 6-pin cylinder, two nickel silver keys, and Key-in-Lever Cylinder Model Only: Schlage "C" Keyway
  • Accessibility Standard: Americans with Disabilities Act (ADA)
  • Fire Rating: UL 10C fire rated
  • Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
  • Environmental: Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C)
