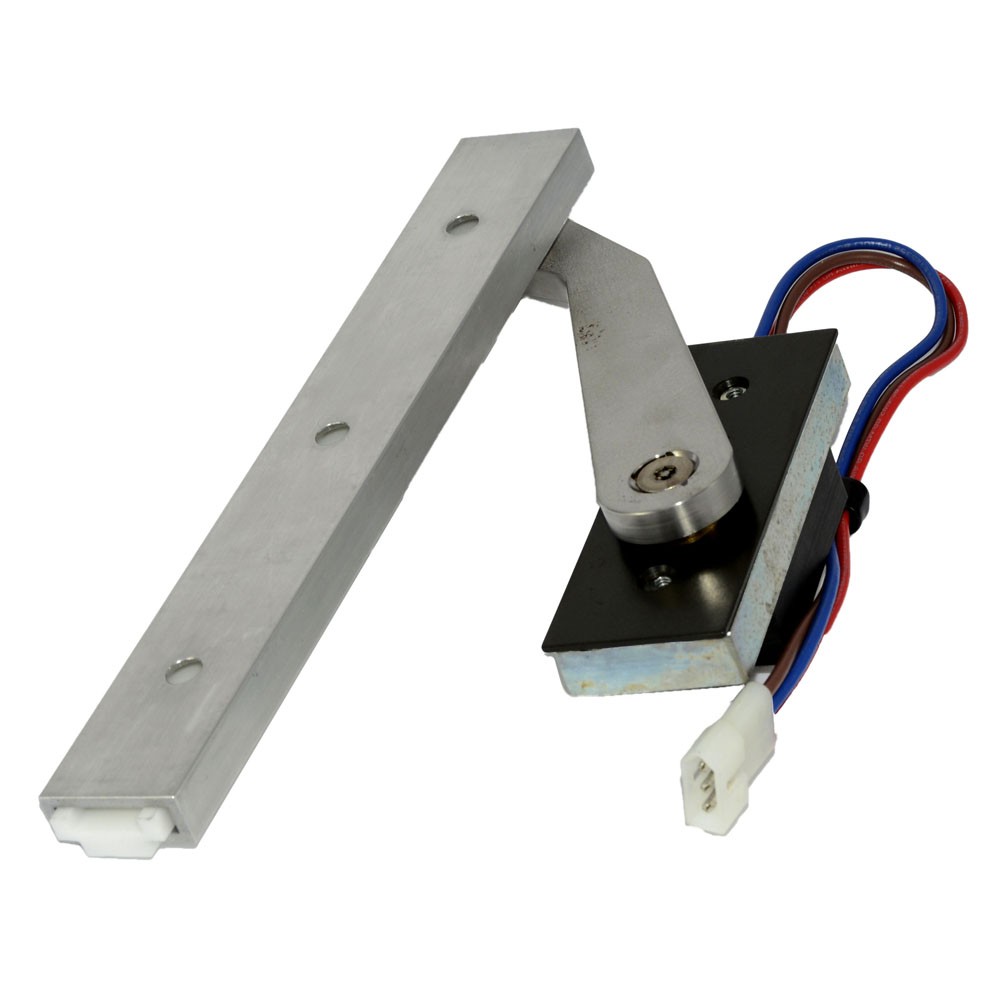

Southern Folger Door Position Switches

SKU # FA523

A sensitive, door-actuated switch for monitoring the positions of a swinging door. It senses when a door is moved from its fully-closed position and allows a signal to be sent to a remote location – activating an alarm and/or indicating lights – or it can be used for electrical interlocking.

Southern Folger is the result of the merger of two leading detention manufacturers: Southern Steel and Folger Adam.

THIS ITEM IS ONLY SOLD TO CORRECTIONAL FACILITIES.

Pricing varies based on options selected below.

Call or Request a Quote for Pricing and Availability of this item.

Contact us to review your product needs!

US$1,809.91

Hand *
Type *

Qty:

Clear All

Description:

Mortise installation – Switch body mortises into the header of a standard, 2" high door frame and the track mortises into the top edge of a door.
Fully concealed – Switch body and track are inaccessible when the door is closed.
Self-concealing slide and track – low-friction, nylon slide and extruded, aluminum track with a natural finish.
Adjustable switch – An eccentric stud on the connecting arm provides a fine adjustment of the switch for variations in field conditions.
Plug connector – A two-piece, electrical connector which permits field wiring, without having the switch present, and allows removal of the switch, without disturbing the field wiring. The receptacle of this connector has 9" long wire leads and may be sent to the job site for prewiring of the opening. When the switch is installed, its connector simply plugs into the already-wired, field receptacle.
Tamper-resistant screws are used for exposed locations.
Handed – Specify either left hand (LH), for left-hand and right-handreverse doors; or right hand (RH), for right-hand and left-hand-reverse doors.
Supplied with mounting screws, wiring diagram, template information and installation/operation instructions.
