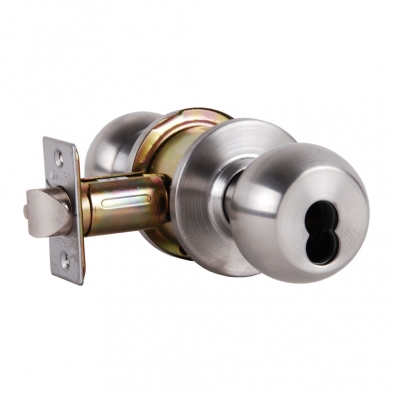

Arrow Lock RK11BD-32D-IC Entrance Knob Lock
Arrow RK11BD - Grade 2 Entrance Knob Lock
Latchbolt operated by knob either side except when outside knob is locked by turn-button inside. When outside knob is locked, latchbolt operated by key outside or turning inside knob. Inside button must be manually released.
Knob: Ball - BD
Finishes Options: 605 US3 03 Bright Brass, 606 US4 04 Satin Brass, 612 US10 10 Satin Bronze, 613 US10B 10B Dark Oxide Bronze, Oil Rubbed, 630 US32D 32D Satin Stainless Steel
Handing: Non-handed
Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
Thru-bolts: Removable thru-bolts standard on RL Series
Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
Cylinder: Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.
